Sonic LD-5
Wireless covert earpiece - this page is a stub

LD-5 is a miniature in-ear earphone or earpiece, manufactured between 1995 and 2012 by Sonic Communications International Ltd. in Birmingham (UK). It is intended for use with covert radio systems that are hidden under the user's clothing, and communicates with the covert radio via an induction loop. It was commonly supplied with a concealed Sonic body-wearable radio harness.

The device consists of a pickup coil, an amplifier powered by a miniature battery, and a speaker element, packed in a plastic skin-coloured enclosure that fits entirely inside the ear canal.

From the outside, only the end-panel – with the battery compartment lid that acts as the on/off switch – is visible. In practice, this could easily be concealed by combing the user's hair over it.

The device is powered by a standard 10AE (PR70) button-type battery, that was typically swapped every day at the start of a surveillance task.

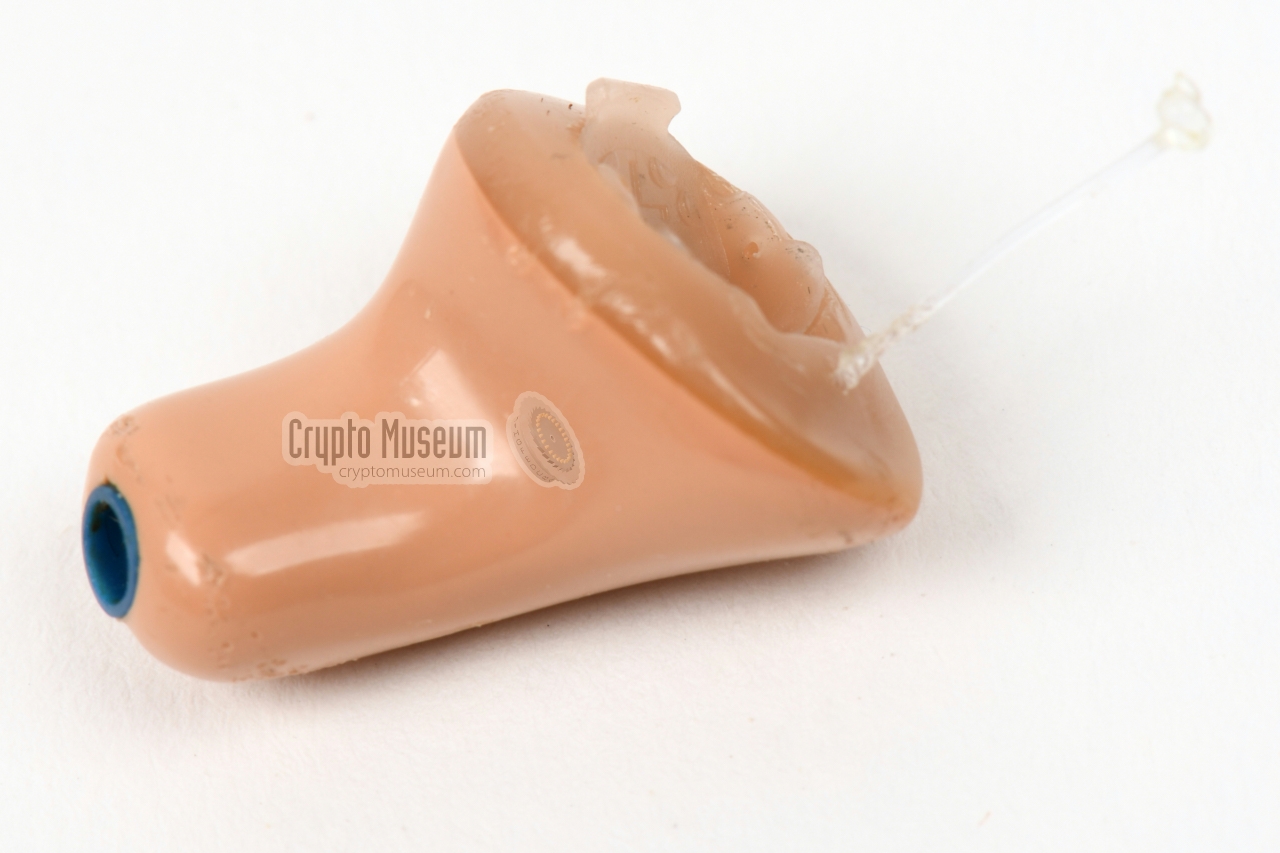

Sonic LD-5 wireless inductive earpiece

The molded plastic enclosure is shaped for the left or right ear. 1 Depending on the environment and the circumstances, the user wears either the left or the right earpiece, or both. For hygienic reasons, they were usually issued to individual operators, rather than as part of the equipment.

Each user was given a black pinch wallet marked SONIC, in which the earpiece(s), spare batteries, a special cleaning tool and the instruction were stowed. The cleaning tool holds a metal pick, a hard brush and a magnetic stub that can be a useful aid when placing or removing a battery.

The earpiece is used in combination with an induction loop fitted around the user's neck, or an induction coil that is hidden under the user's clothing, close to the ear that holds the earpiece. It is connected to the radio and sends the sound to the earpiece in the form of magnetic waves.

Black pinch wallet with Sonic LD-5 earpiece

Unlike the compatible Danavox 131-CD/TELE, which is based on a regular hearing aid, the Sonic LD-5 does not have a volume control knob. Instead, the audio level has to be adjusted with the volume control of the radio itself. Because the LD-5 does not have a volume control and uses a smaller battery, the device is smaller than the Danavox and can be inserted deeper into the ear canal, making it more suitable for covert surveillance. A short nylon cord is present to retract the device. The LD-5 was commonly supplied with the covert radio body harnesses that were also made by Sonic. It was eventually succeeded by even smaller devices that were virtually invisible.

  1. The one shown here is molded for the right ear.
  2. Commonly known as an Audio Frequency Induction Loop System (AFILS).

Black pinch wallet with Sonic LD-5 earpiece
Sonic LD-5 wireless inductive earpiece
Sonic LD-5
Rear view

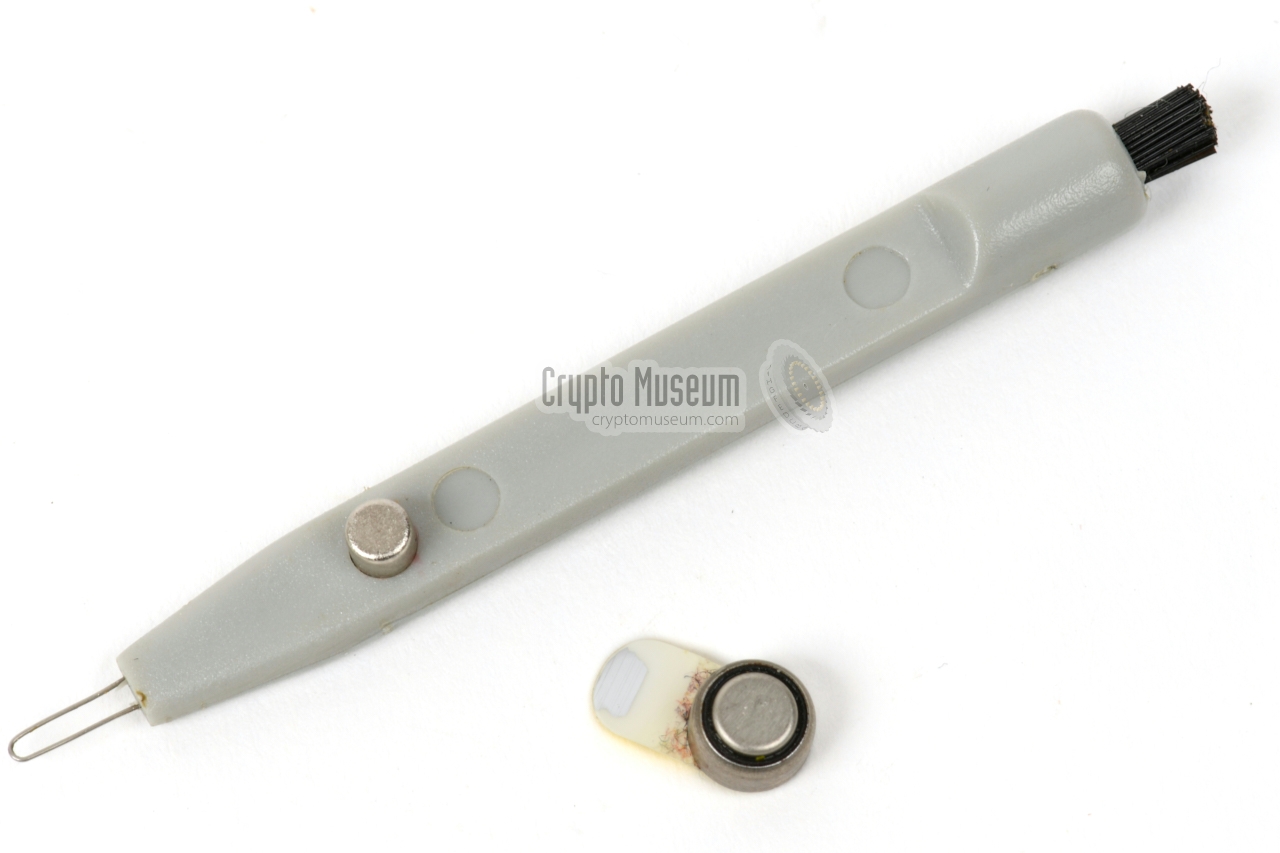

Cleaning aid with metal tip, brush and magnetic stub

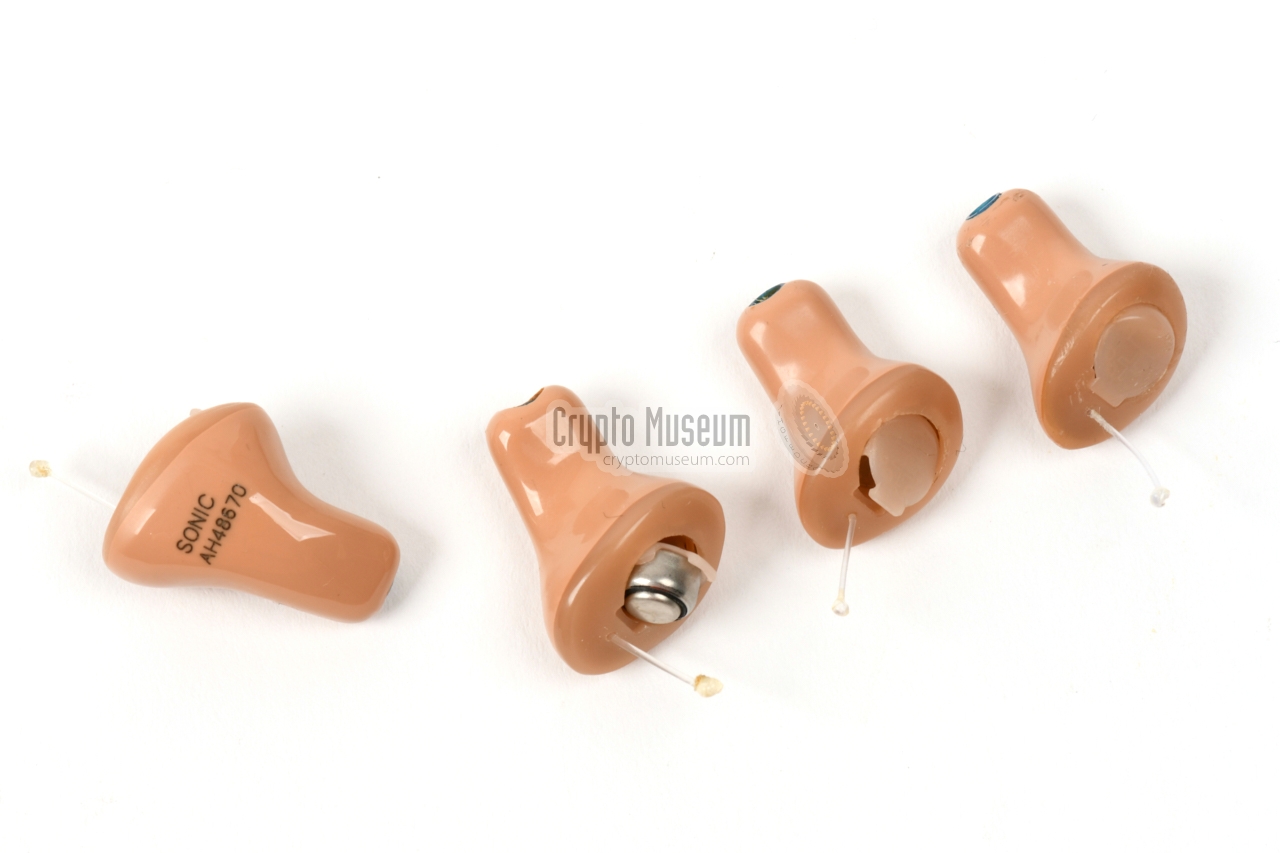

Sonic LD-5 in different positions, demonstrating the use of the battery compartment as on/off switch
A
×
A
1 / 6
Black pinch wallet with Sonic LD-5 earpiece
A
2 / 6
Sonic LD-5 wireless inductive earpiece
A
3 / 6
Sonic LD-5
A
4 / 6
Rear view
A
5 / 6
Cleaning aid with metal tip, brush and magnetic stub
A
6 / 6
Sonic LD-5 in different positions, demonstrating the use of the battery compartment as on/off switch

Features

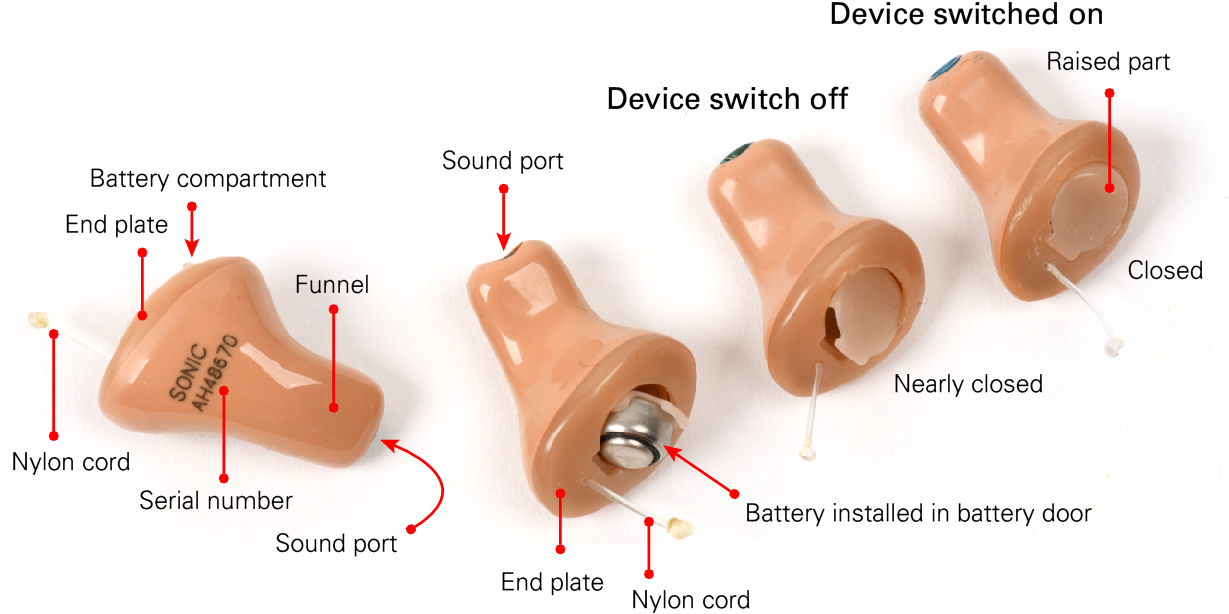

The image below shows four Sonic LD-5 inductive in-ear units of which the rightmost three show the function of the battery door that also acts as the on/off switch. In the first device, the 10AE battery is installed at the inside of the battery door. The door is then toppled so that the battery disappers inside the device. When the door is fully closed (rightmost example) the device is ON. To turn it off again, tilt the door slightly, by pressing the raised edge with a finger nail.

Click to see more

The units have a universal shape that fits most ear canals. The oval end-panel measures just 8 by 10 mm, as a result of which it can be inserted deeper into the ear canal that most regular ear­pieces and hearing aids. The nylon cord is present to retract the device easily when finished.

Covert radios that use this earpiece
Tait T-3000/II covert body-wearable scrambler radio
Motorola Saber II secure portable radio
Block diagram
Below is the block diagram of a typical setup. At the left is the receiver-part of the (covert) radio, to which an induction loop with several windings is connected instead of the loudspeaker. The loop converts the audio frequency (AF) signals from the receiver to a magnetic field that varies in the rythm of the AF signal (sound). If the induction loop is worn around the neck, the magnetic field is wide enough to reach the pickup coil inside the earpiece, where it is then amplified.


The advantage of using a neck loop, is that the magnetic field is identical at either side of the body, so that the user can wear the earpiece in the left or right ear, or even wear earpieces in both ears as shown in the block diagram below. This is especially useful in noisy environments.


Although a induction loop (neck loop) offers the best performance, it is sometimes inconvenient, as it has to be hidden under the user's clothing before it can be connected to the radio. In such cases a flat induction coil with a wide stray field could be used as an alternative. It can easily be attached to the inside of, say, a coat by means of a safety pin. The disadvantage is that the stray magnetic field is much narrower, as a result of which it has to be placed close to the earpiece.


Flat inductors are often used with pre-wired radio harnesses or with bullt-proof vests, that are worn under the clothing, and allow for quick deployment. The inductor has to be placed at a strategic position close to one of the shoulders, near the ear in which the earpiece is worn.
