Danavox 131-CD/TELE
Wireless covert earpiece

131-CD/TELE is a miniature in-ear earphone or earpiece, manufactured between 1990 and 2010 by Danavox (ReSound) in Ballerup (Denmark). It is intended for use with covert radio systems that are hidden under the user's clothing, and communicates with the radio via an induction loop. The device is derived from Danavox' 131-CD hearing aid, but was not listed in their standard catalog.

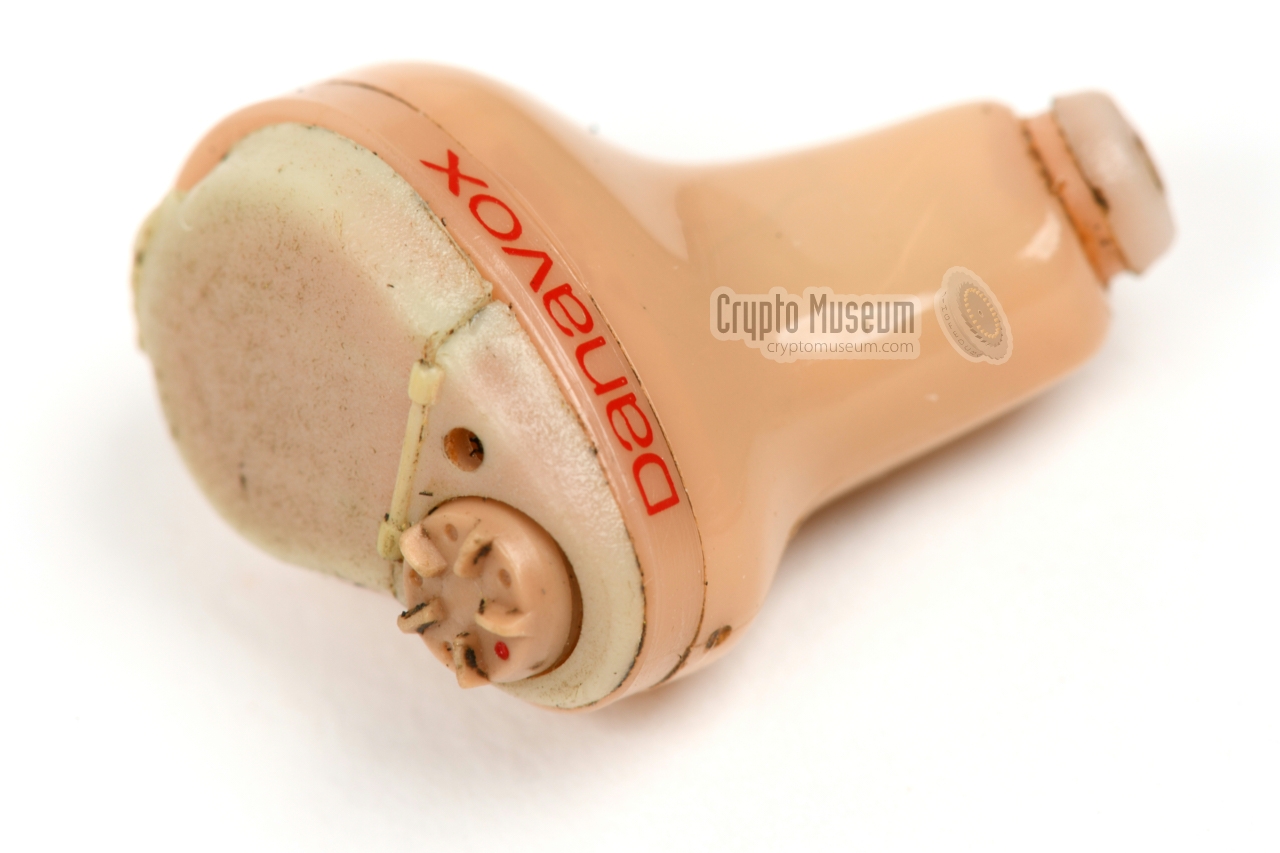

The device consists of a pickup coil, an amplifier powered by a miniature battery, and a speaker element, packed in a plastic skin-coloured 1 enclosure that fits entirely inside the ear canal.

From the outside, only the end-panel – with the battery compartment lid and the volume control knob – is visible. In practice, this could easily be concealed by combing the user's hair over it.

The device is powered by a standard G3-A (AG3) button-type battery, that was typically swapped every day at the start of a surveillance task.

Danavox covert earpiece

The molded enclosure was shaped for the left or right ear. 2 Depending on the circumstances and the environment, the user would wear either the left or the right earpiece, or both. For hygienic reasons, they were usually issued to individuals, rather than with the equipment. The earpiece is used in combination with an induction loop, fitted around the user's neck, or a flat inductor that is hidden under the user's clothing, close to the ear that holds the earpiece. The induction loop is connected to the user's radio and sends the sound to the earpiece in the form of magnetic waves.

The device is based on the Danavox 131-CD hearing aid, which has a built-in microphone (M) and a telephone pickup coil (T). The latter can also be used in theatres that have a hearing aid induction loop. 3 The 131-CD/TELE is a simplified version, of which the microphone is missing. Danavox in-ear units were used for covert surveillance by many special police units throughout the world, and also by intelligence and security services, until they were succeeded by smaller units that are fitted deeply inside the ear canal and are completely invisible from the outside.

  1. Different colours and materials were available on request.
  2. The left/right variants are sometime identified by the colour of the brand name, printed on the side.
  3. Commonly known as an Audio Frequency Induction Loop System (AFILS).

Danavox storage container
Danavox container with 131-CD/T earpiece, cleaning tool and battery
Danavox covert earpiece
Three Danavox covert earpieces
The Danavox 131-CD/T (centre) shown aside the Sonic LD-5 and a brandless sub-miniature earpiece
Three Danavox earpieces in plastic cointainer
A
×
A
1 / 6

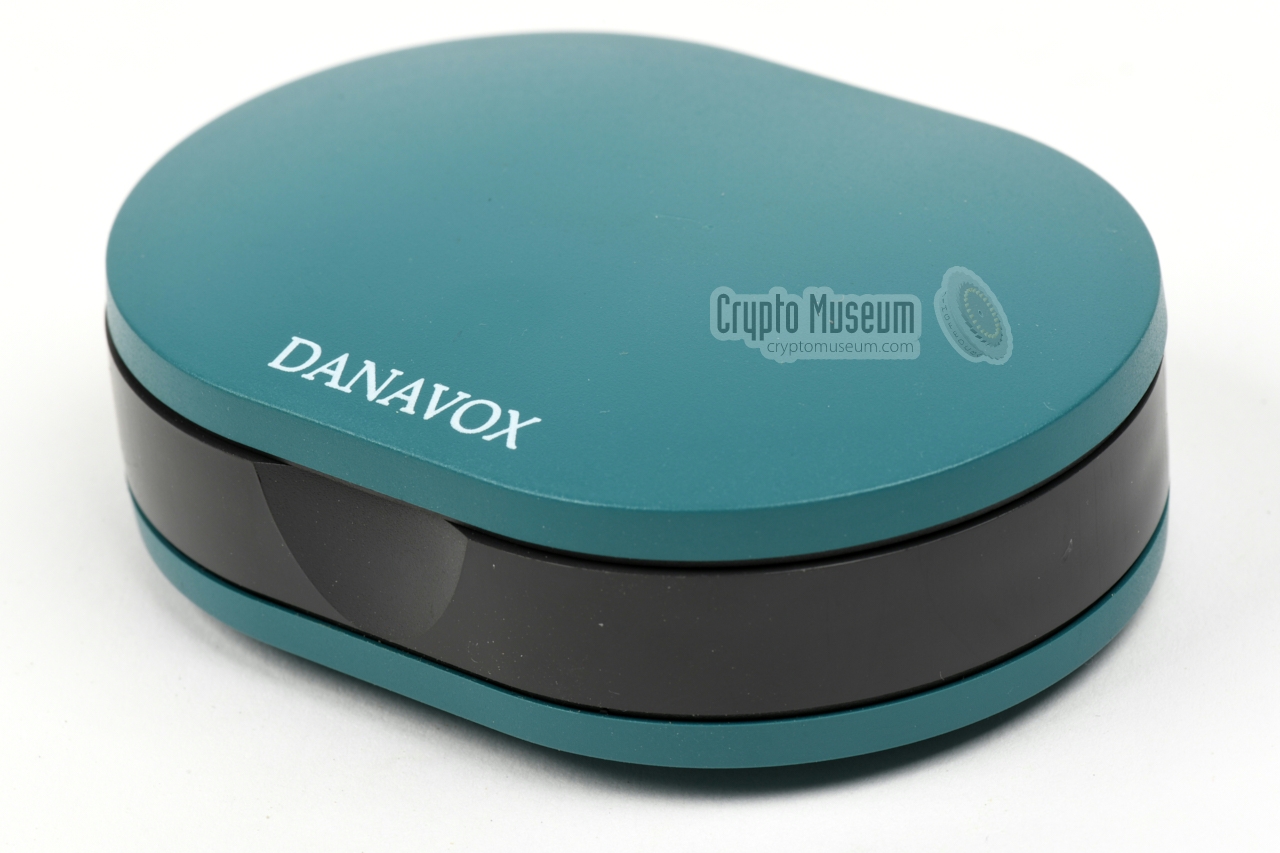

Danavox storage container
A
2 / 6

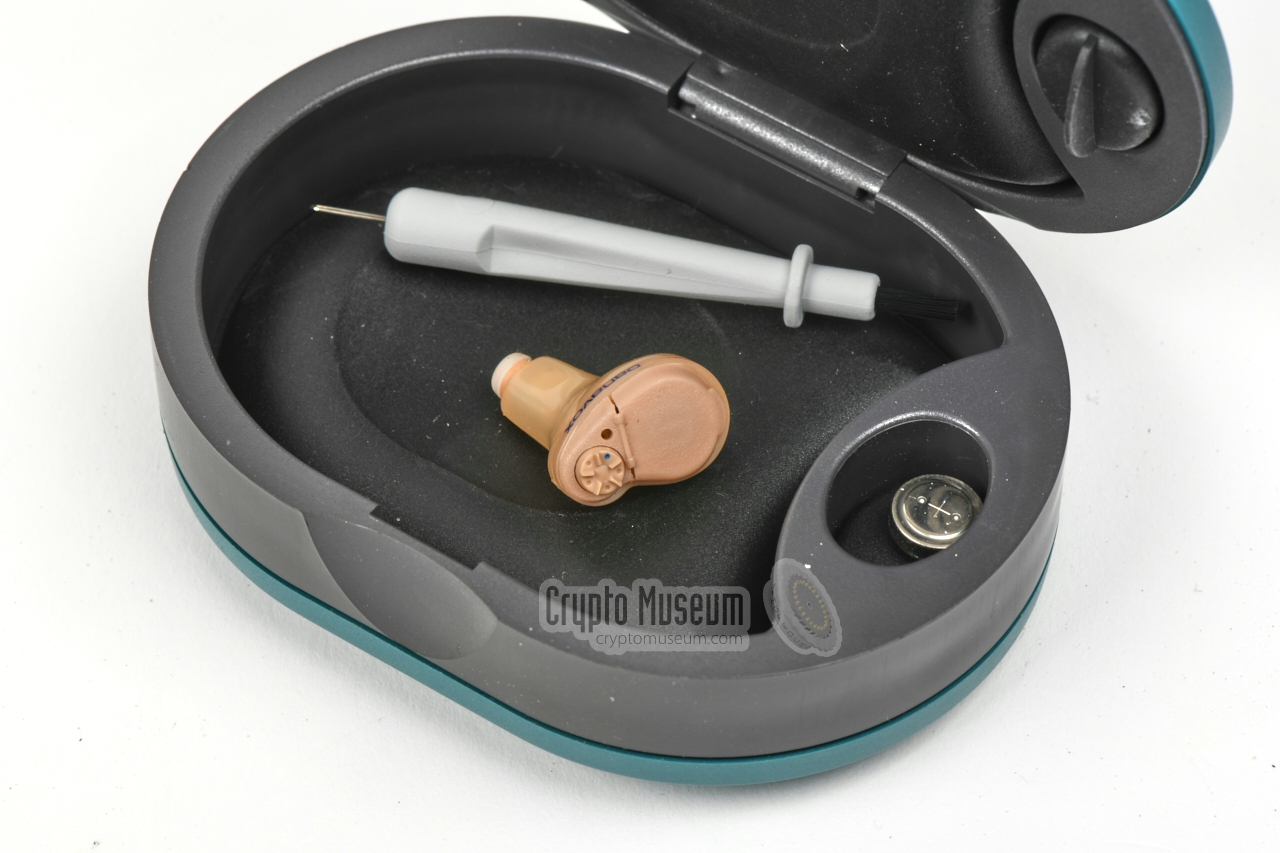

Danavox container with 131-CD/T earpiece, cleaning tool and battery
A
3 / 6
Danavox covert earpiece
A
4 / 6
Three Danavox covert earpieces
A
5 / 6

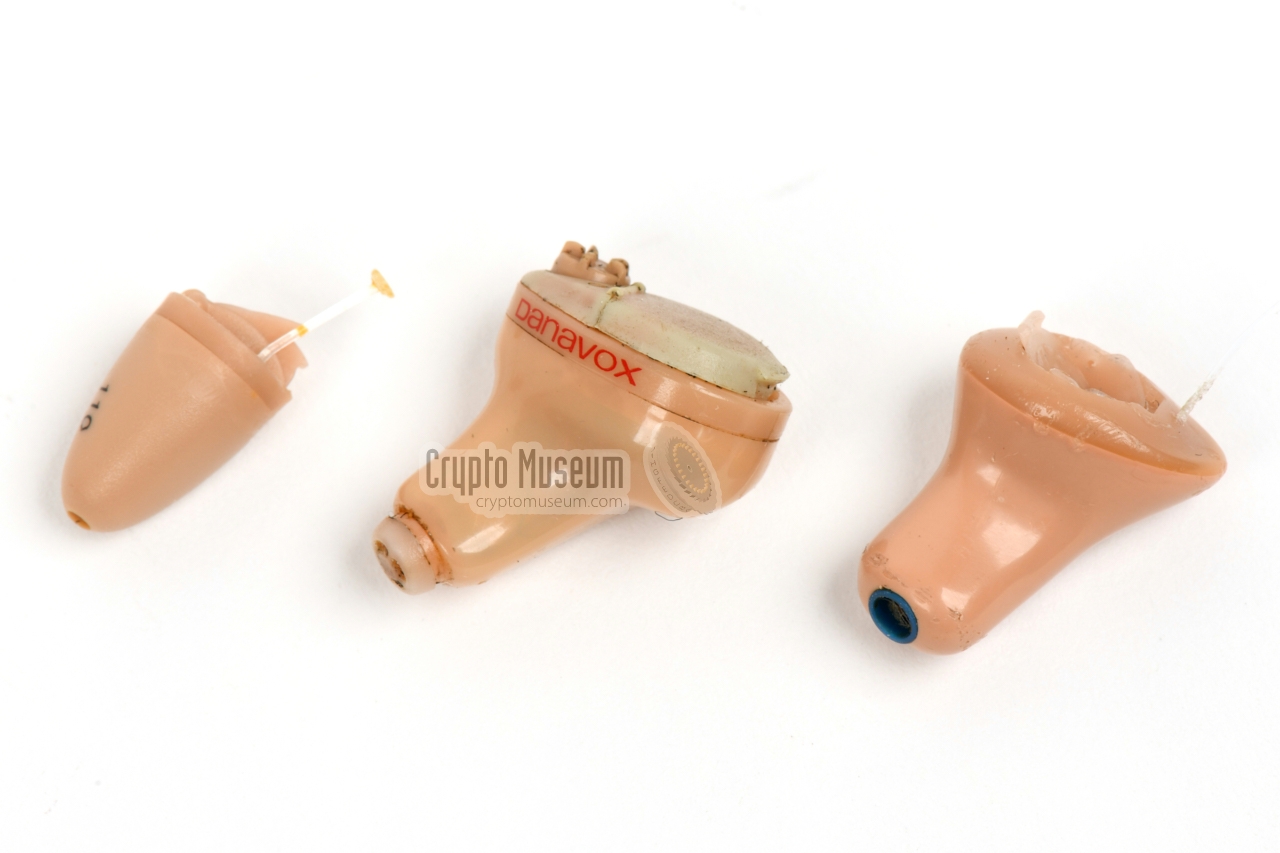

The Danavox 131-CD/T (centre) shown aside the Sonic LD-5 and a brandless sub-miniature earpiece
A
6 / 6

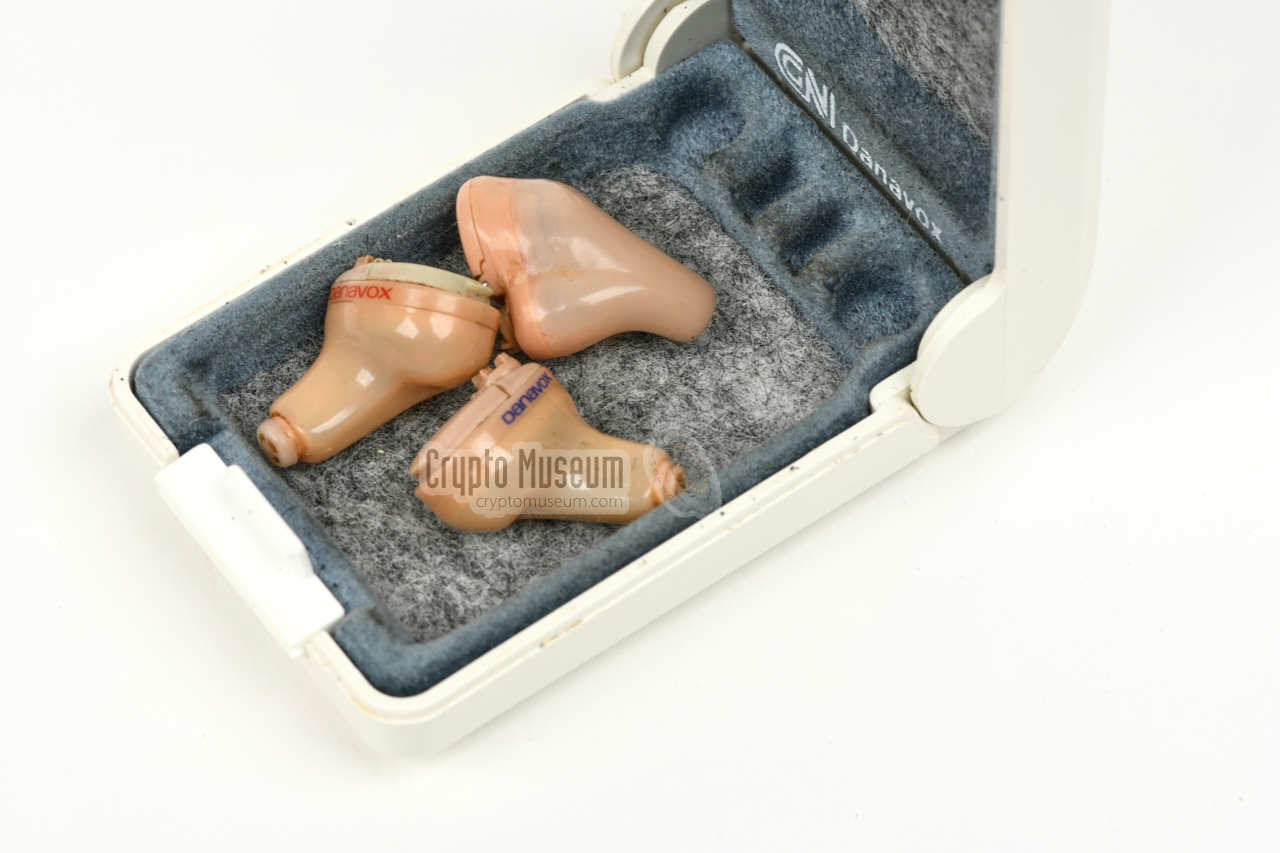

Three Danavox earpieces in plastic cointainer

Features

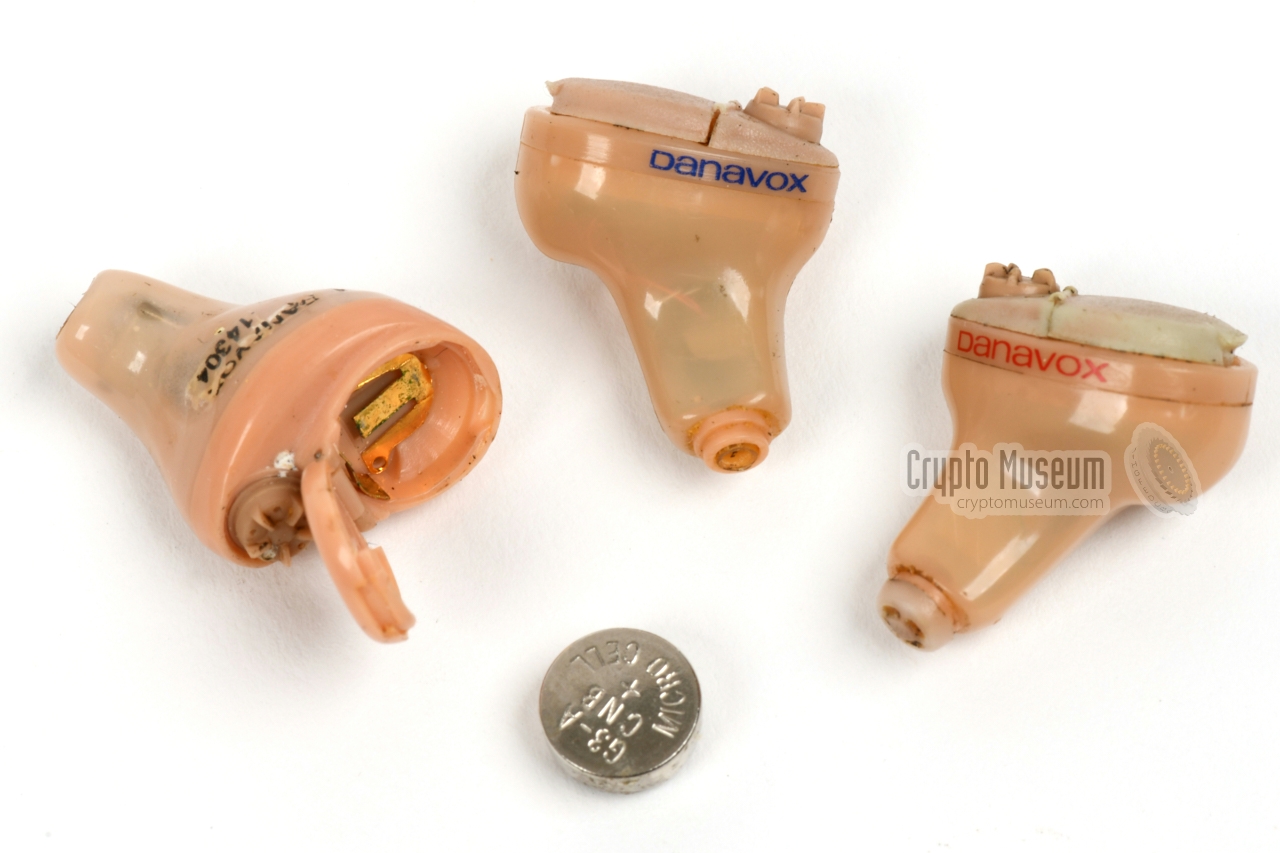

The image below shows three Danavox inductive in-ear units of which the rightmost two are the left and right variants. The brandname – Danavox – is printed in blue and red respectively. At the left is a unit of which the hinged battery compartment is open and the battery has been removed.

Click to see more

The units have a universal shape that fits most ear canals. The oval end-panel measures just 10 by 16 mm. In some cases the units were fitted inside customised enclosures that were molded specifically for the operator's ears. Although this is more expensive, it offers a better acoustic performance, as it fits more tightly and therefore suppresses ambient noise sources much better.

Covert radios that use this earpiece
Tait T-3000/II covert body-wearable scrambler radio
Racal Cougar PRM-4735 body-wearable covert radio with voice encryption
Racal Cougar PRM-5120 body-wearable covert radio with voice encryption
Block diagram
Below is the block diagram of a typical setup. At the left is the receiver-part of the (covert) radio, to which an induction loop with several windings is connected instead of the loudspeaker. The loop converts the audio frequency (AF) signals from the receiver to a magnetic field that varies in the rythm of the AF signal (sound). If the induction loop is worn around the neck, the magnetic field is wide enough to reach the pickup coil inside the earpiece, where it is then amplified.


The advantage of using a neck loop, is that the magnetic field is identical at either side of the body, so that the user can wear the earpiece in the left or right ear, or even wear earpieces in both ears as shown in the block diagram below. This is especially useful in noisy environments.


Although a induction loop (neck loop) offers the best performance, it is sometimes inconvenient, as it has to be hidden under the user's clothing before it can be connected to the radio. In such cases a flat induction coil with a wide stray field could be used as an alternative. It can easily be attached to the inside of, say, a coat by means of a safety pin. The disadvantage is that the stray magnetic field is much narrower, as a result of which it has to be placed close to the earpiece.


Flat inductors are often used with pre-wired radio harnesses or with bullt-proof vests, that are worn under the clothing, and allow for quick deployment. The inductor has to be placed at a strategic position close to one of the shoulders, near the ear in which the earpiece is worn.
