Antennas Stasi
Ground antenna
- wanted item
KAE, also known as Projekt 62630-66 was a ground
antenna for HF
radio signals, developed around 1985 in the former DDR (East-Germany).

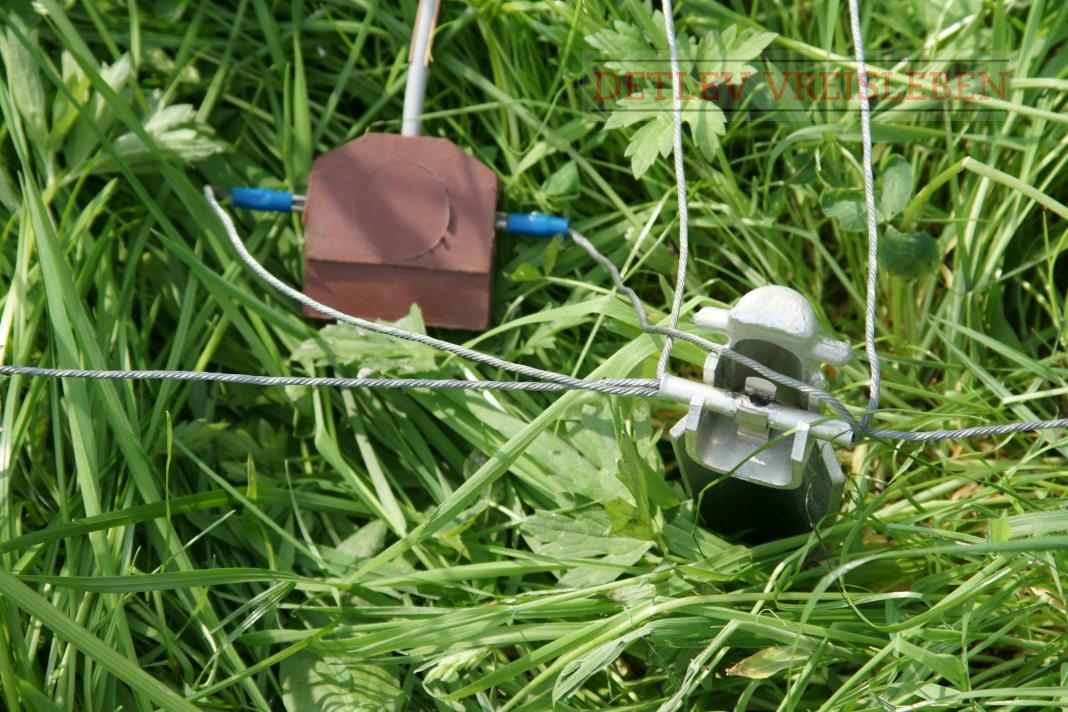

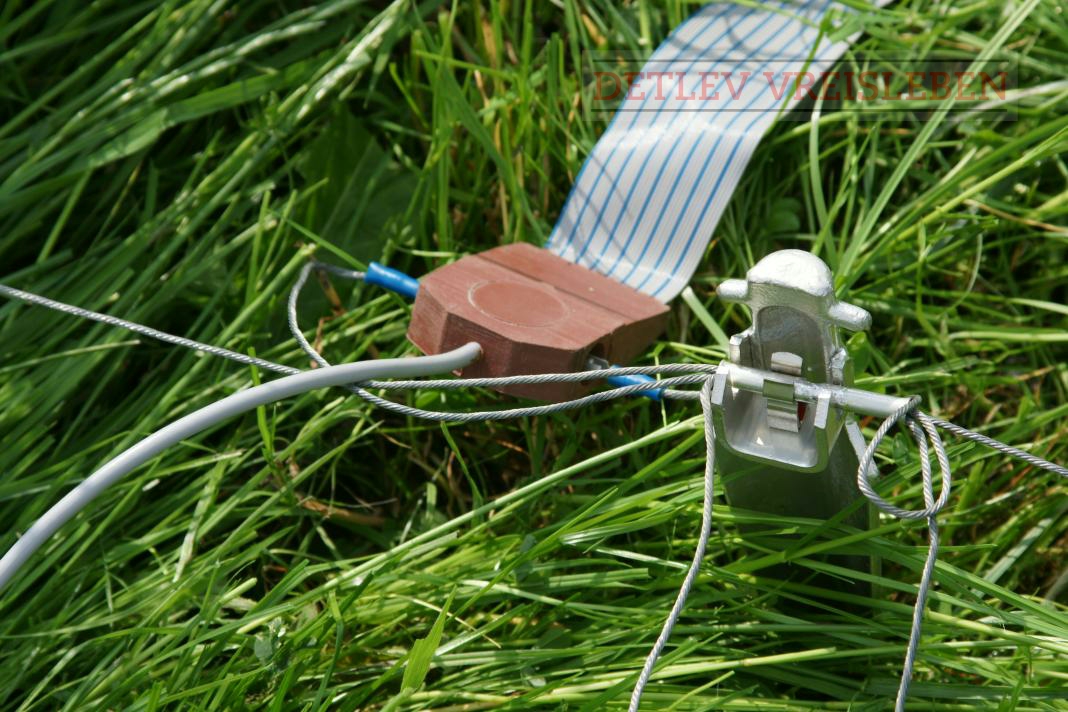

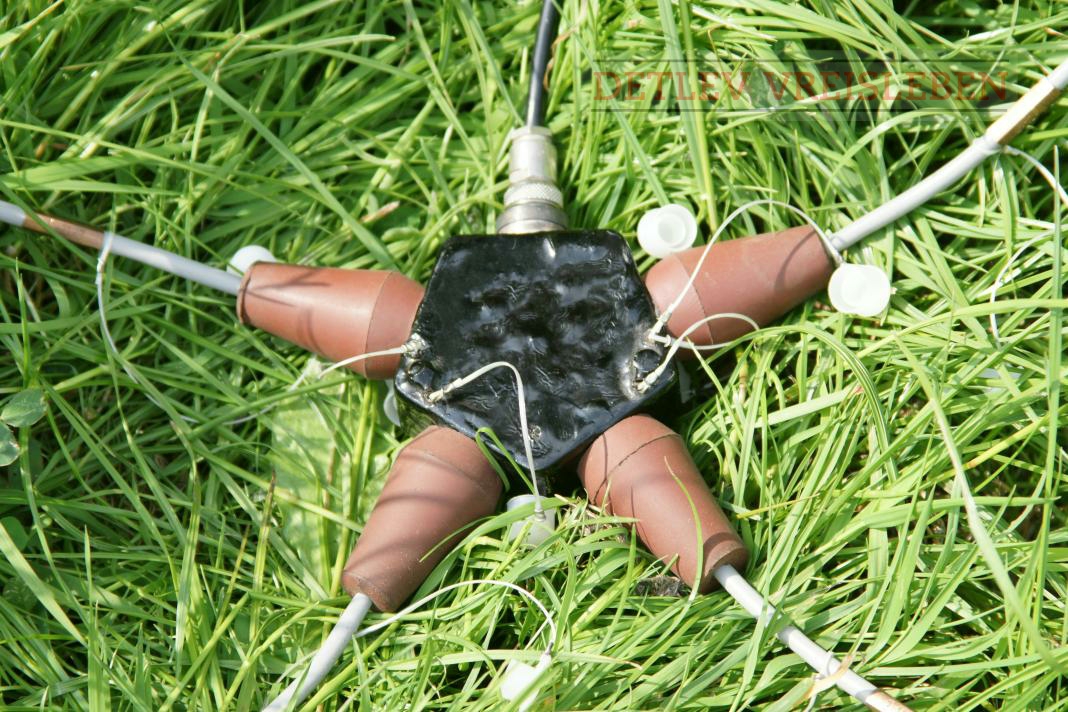

The antenna consists of a number of interconnected wires that can be burried
into the ground, whilst still being able to function as an antenna.
The antenna is fully invisible for air reconnaissance and was frequently
used with Cold War bunkers in the DDR.
The KAE was also used with the WSA-1 and WSA-6 spy radio sets.
|
All photographs by Detlev Vreisleben [1].
|
| Frequency | A | B | C | D | E |
| 1.5 to 20 MHz | 23 m | 15 m | 11 m | 5 m | 1.5 m |
| 3 to 30 MHz | 23 m | 9.5 m | 5.5 m | 5 m | 1.5 m |
|
| Type | Drawing | Layout | MHz | kW | m2 | Application |
|
|
| KAE 1301 | 1557.038.10001 | 1557.038-00001 | 1.5-20 | 1 | 15 × 23 m | Mobile |
| KAE 1311 | 1557.038.10002 | 1557.038-00001 | 1.5-20 | 1 | 15 × 23 m | Fixed |
| KAE 1302 | 1557.038.10003 | 1557.038-00002 | 3-30 | 1 | 9.5 × 23 m | Mobile |
| KAE 1312 | 1557.038.10004 | 1557.038-00002 | 3-30 | 1 | 9.5 × 23 m | Fixed |
| KAE 1402 | 1557.038.10005 | 1557.038-00003 | 3-30 | 5 | 9.5 × 23 m | Mobile |
| KAE 1412 | 1557.038.10006 | 1557.038-00003 | 3-30 | 5 | 9.5 × 23 m | Fixed |
|
Device Ground antenna Purpose Concealed Cold War communication Name KAE Model 1557.38 Project 32630-66 Developer ? User NVA, HV A (MfS, Stasi) Year 1983 Country East-Germany (DDR) Frequency see below Area see below Polarity Horizontal Power 1000 W (5000 W) Distance 10 km - 5000 km Setup ~ 10 min (2 persons) Temperature -40°C to +50°C Storage -40°C to +70°C
|
Frequency 1.5-20 MHz Surface area 15 × 23 m
|
|
|
KAE 1302, KAE 1312, KAE 1402, KAE 1412
|
|
|
Frequency 3-30 MHz Surface area 9.5 × 23 m
|
|
|
|
