Teleprinter connection device
- this page is a stub
Fernschreibanschlüssgerät 200, abbreviated FAG-200, is a
teleprinter connection device (TCD),
introduced in 1986 by Philips
daughter TeKaDe in Germany.
It was intended for the connection of TeKaDe teleprinters
FS-200/220
to a telex subscriber line, using TW39 or ED1000 signalling.
|
|

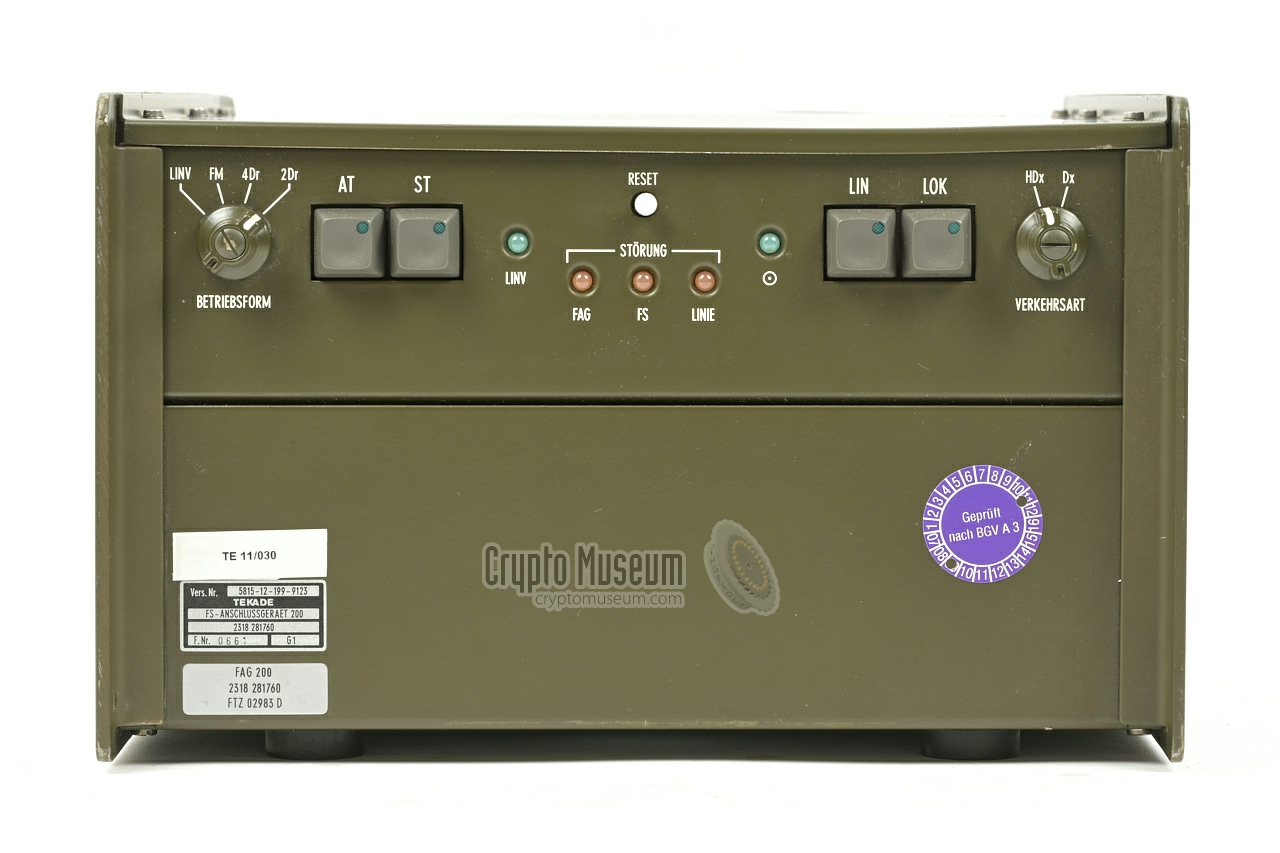

At the far left of the front panel is a 4-position rotary selector,
by the which the desired mode of operation can be set. It has the
following four positions:
|
LINV Line/exchange FM Frequency Modulation (FSK) 4Dr 4-wire line 2Dr 2-wire line
|
AT Anruf-Taste (call button) ST Stop-Taste (stop button) RESET Reset LIN Line operation LOK Local operation
|
- TCD malfunction
FS Fernschreiber (teleprinter) malfunction LINIE Line malfunction LINV ? O ?
|
Sx Simplex HDx Half-duplex Dx Duplex
|

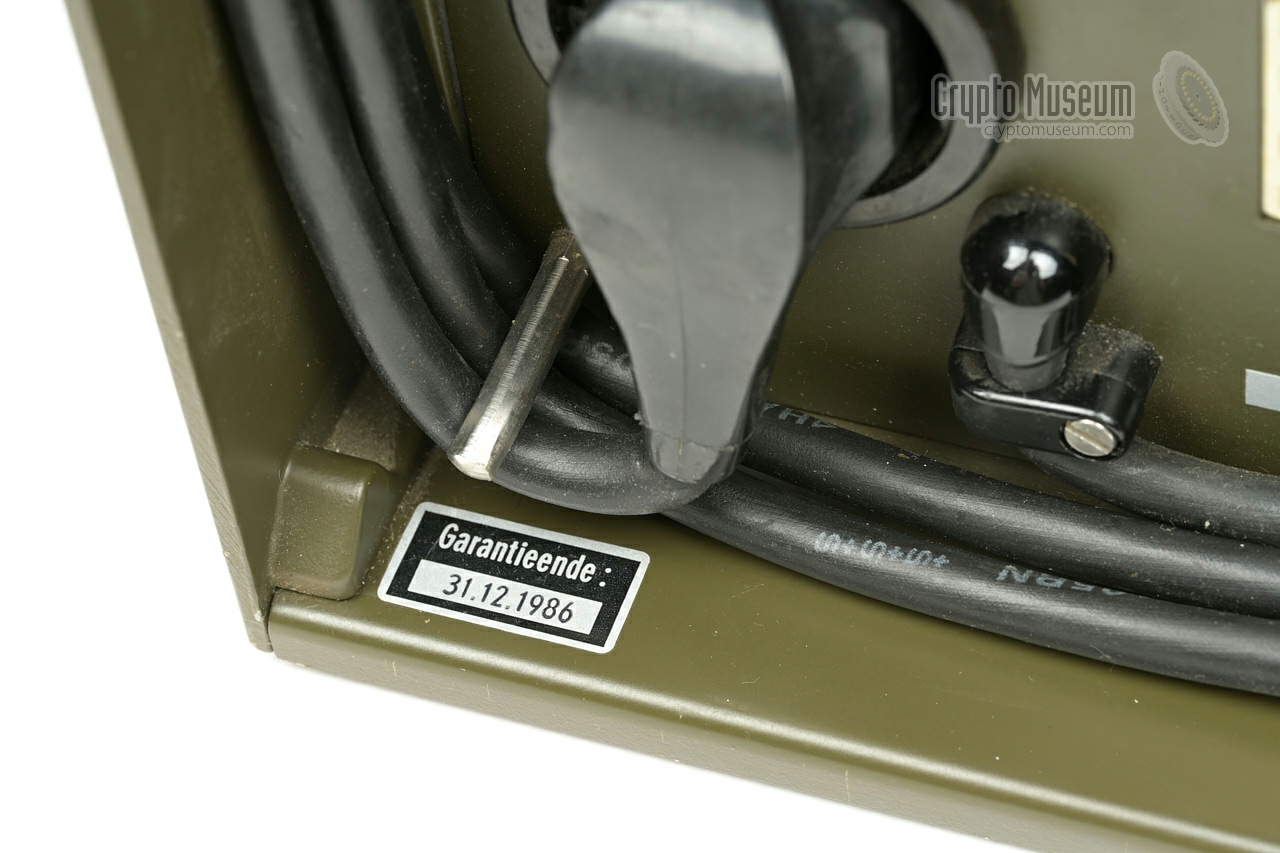

Device Teleprinter connection device (TCD) Purpose Connecting FS-200 or FS-220 to a telext line Name FS-Anschlussgeraet Model FAG-200 Manufacturer TeKaDe Year 1986 Designator 2318 281760 NSN 5815-12-199-9123 (ADo8)
5815-12-318-0567 (V.10) Signalling TW39, ED1000 Interfaces ADo8 or V.10, line (2/4-wire), FM Line 2-wire, 4-wire, single/double current FM/FSK TX: 2250/3150 Hz
RX: 500/700 Hz Current 40 mA (2-wire), 20 mA (4-wire) Power 220V AC, 24V DC Consumption 25W Temperature -10°C to +55°C Storage -40°C to +70°C Dimensions 165 × 270 × 354 mm (HWD) Weight 10 kg
|
Lokal Local operation HV Hand-Vermittlung (manually patched exchange) TW39 Single/double-current 2-wire, 4-wire ED1000 FSK signalling ? Leased line (German: Standleitung)
|
|
|
|
