T send 61
Paper tape transmitter - under construction

T.send.61, often abbreviated to T-61, was a punched paper tape transmitter, or retransmitter, developed in the early 1950s by Siemens in Germany. The device was intended as an add-on for teleprinters (telex machines), such as the Siemens T-37. It allows pre-perforated 5-level (baudot) paper tapes, created on a regular telex, to be transmitted via a telex line or radio channel.

The unit measures 37 x 20.5 x 16 cm and was available in black and beige, to match the telex equipment with which it was used. It is suitable for a 50 baud 1 data rate, and was often used in combination with the Siemens T-37 teleprinter, which did not have a built-in tape transmitter.

The device is powered directly from the 220V AC mains and can be connected to a dedicated telex line or — with a suitable interface — to a radio.

The T.send.61 was introduced in the early 1950s and was in production until approximately 1965.

Siemens T.send.61b

The interior of the T.send.61 can be accessed by loosening a single screw at the centre of the top surface. This allows the case shell to be slid somewhat towards the rear and then lifted off. Inside the case is a motor and some power circuitry, plus a standard Siemens 5-level tape reader.

  1. The device is also suitable for a 45 baud data rate.

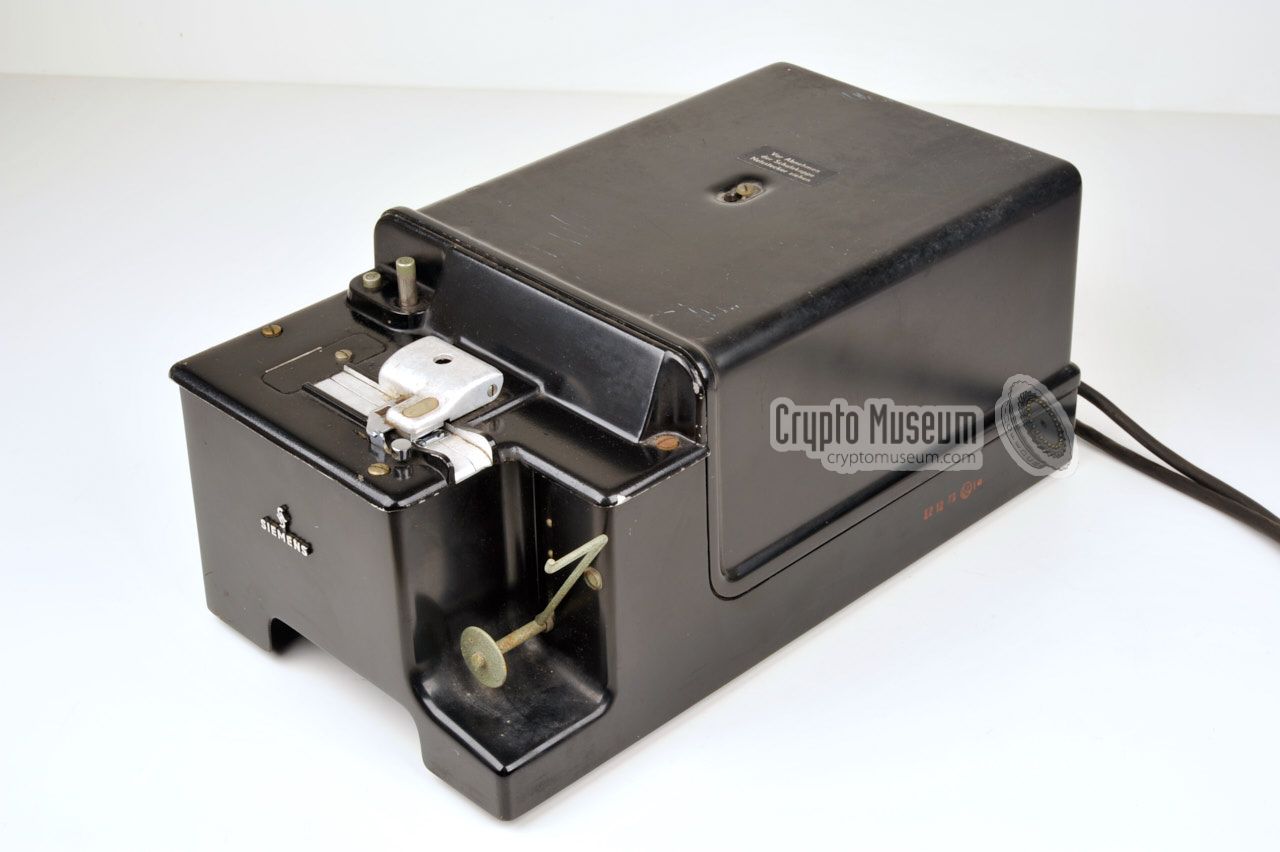

Siemens T.send.61b

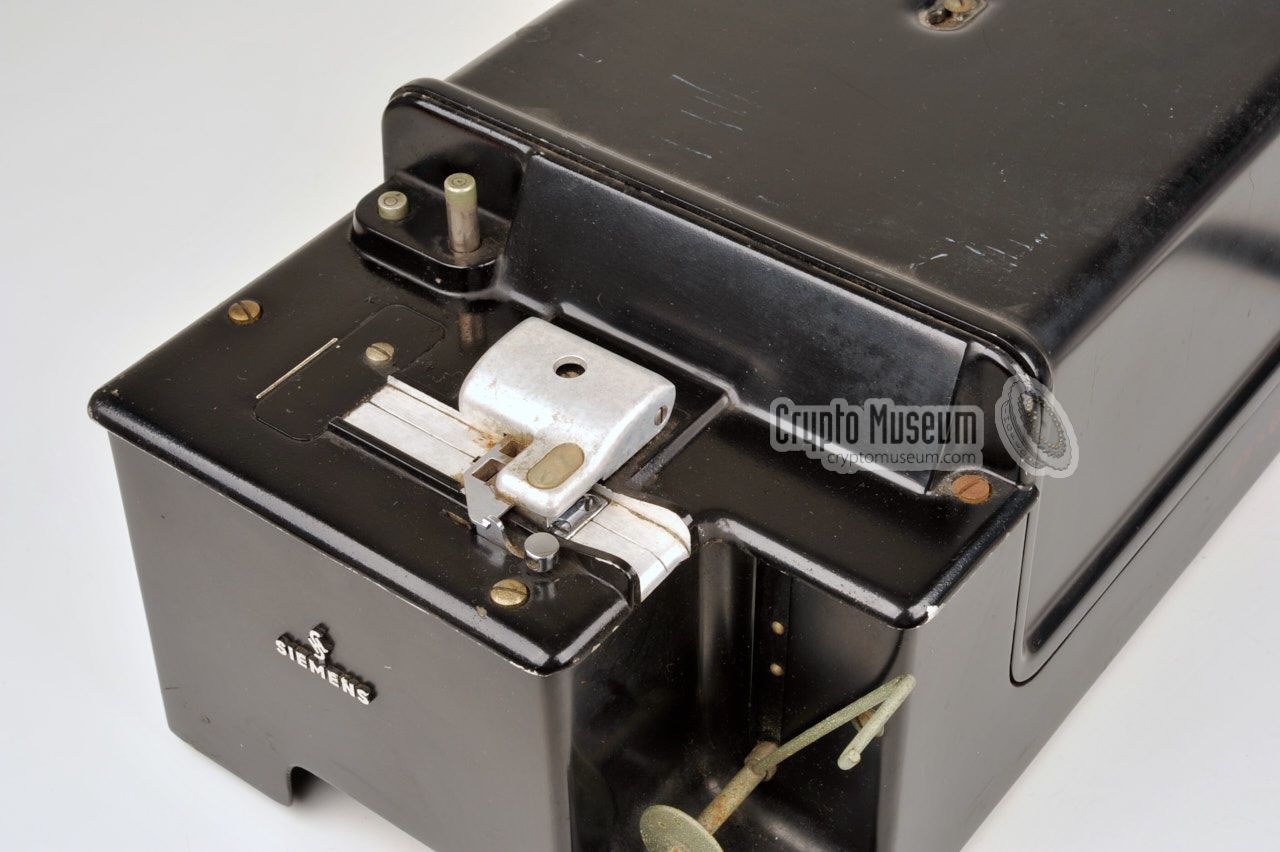

Close-up of the tape rader

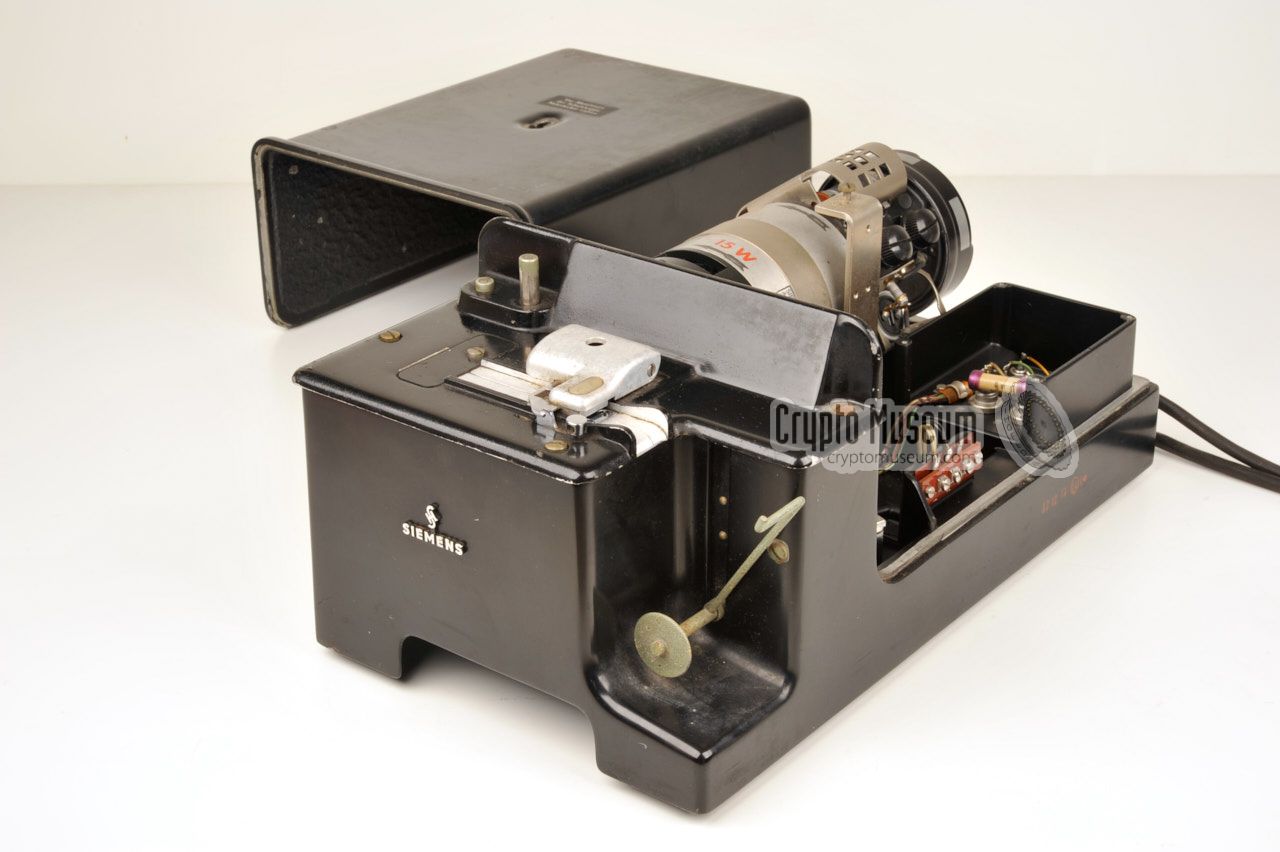

Inside the T send 61

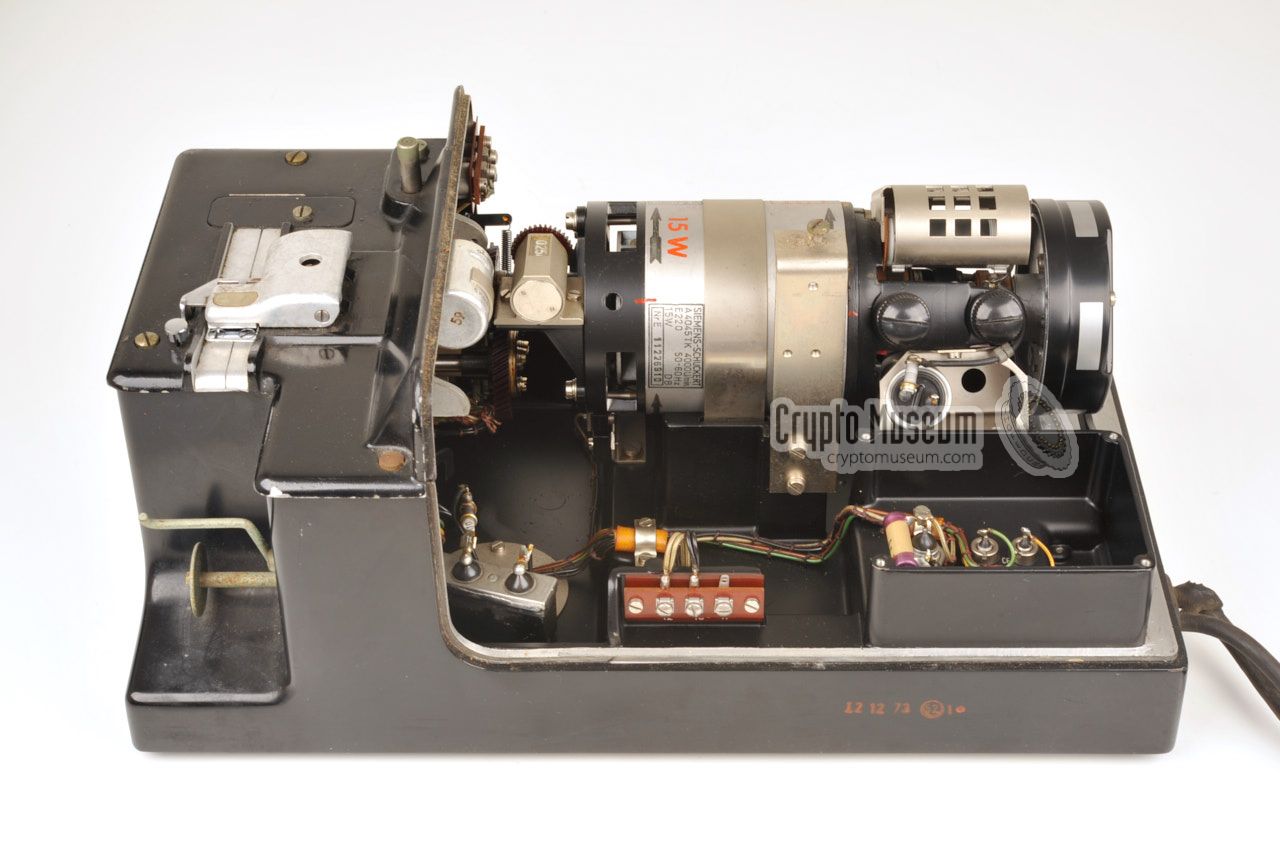

T.send.61b interior

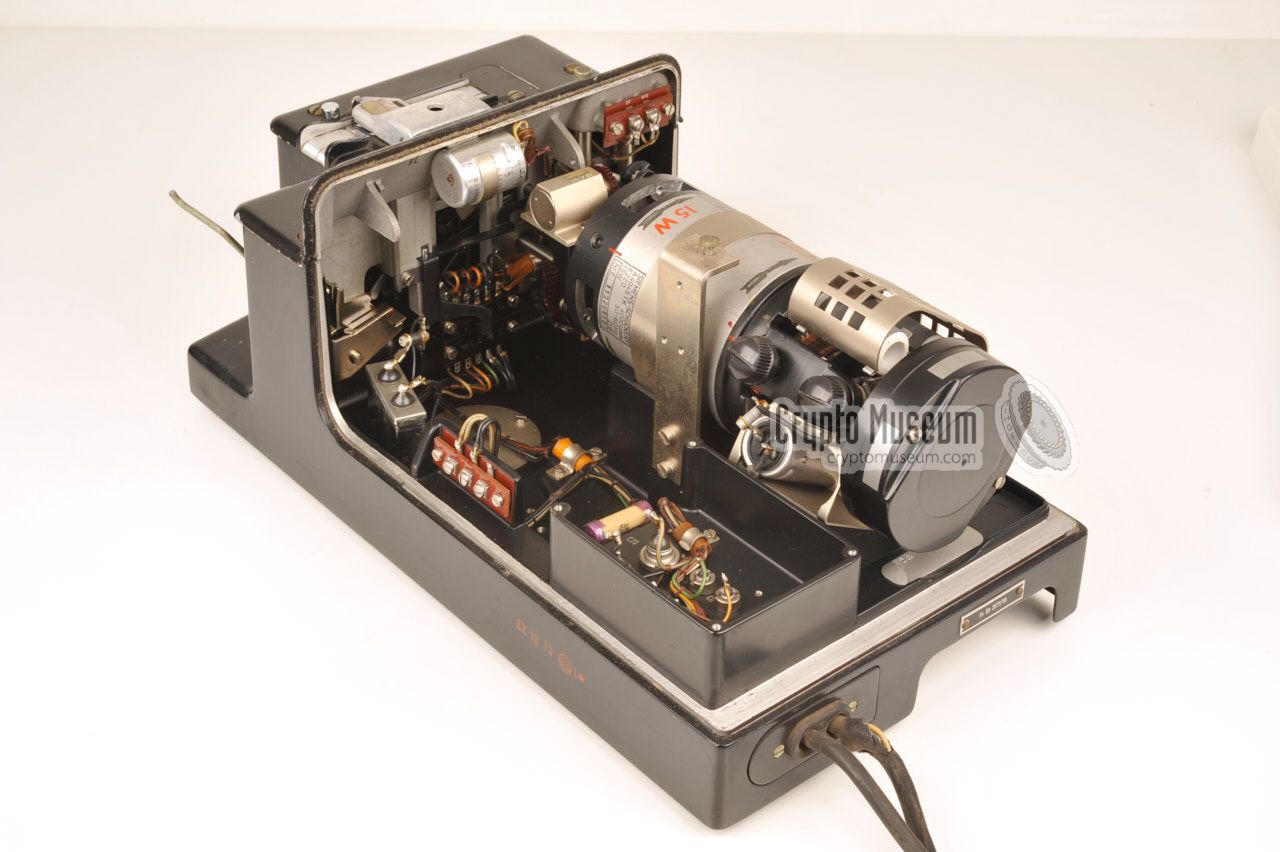

T.send.61b interior

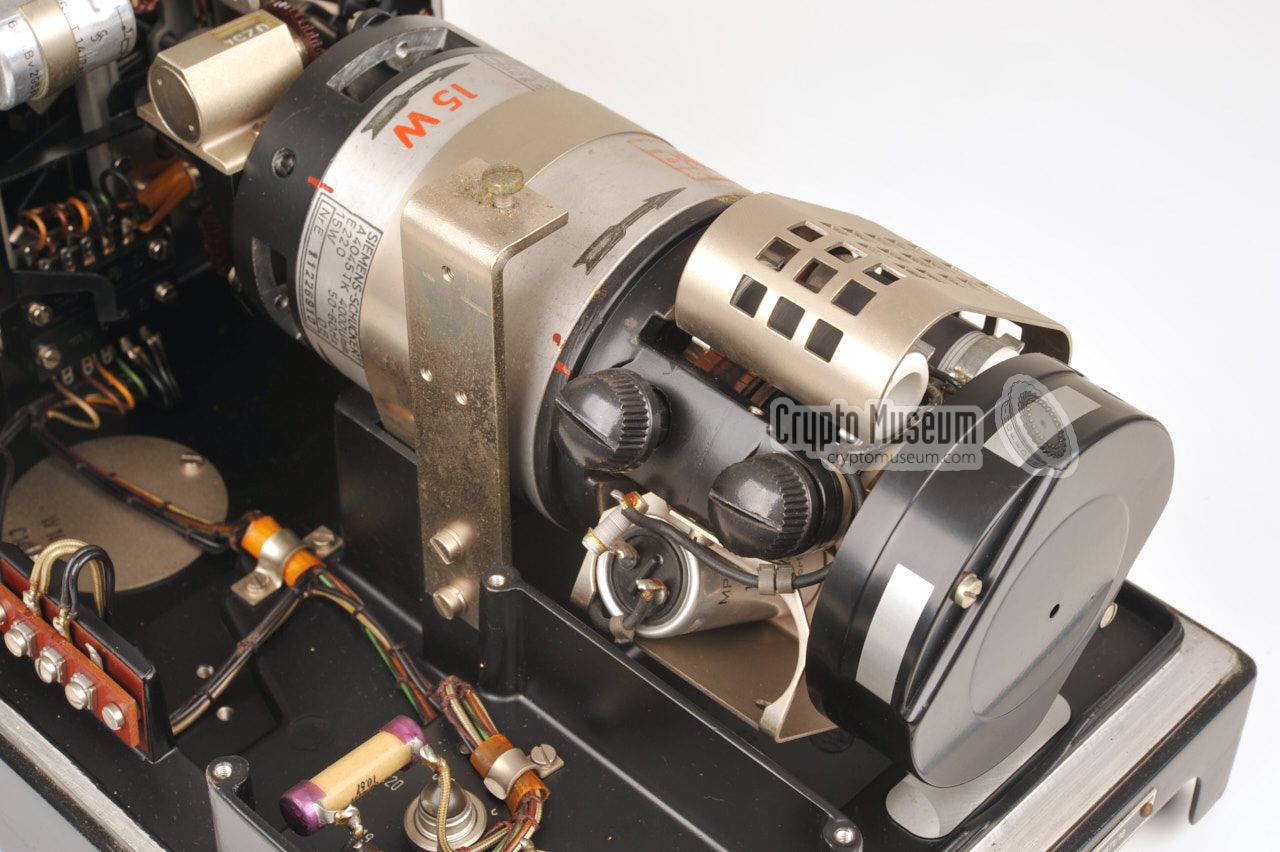

Motor

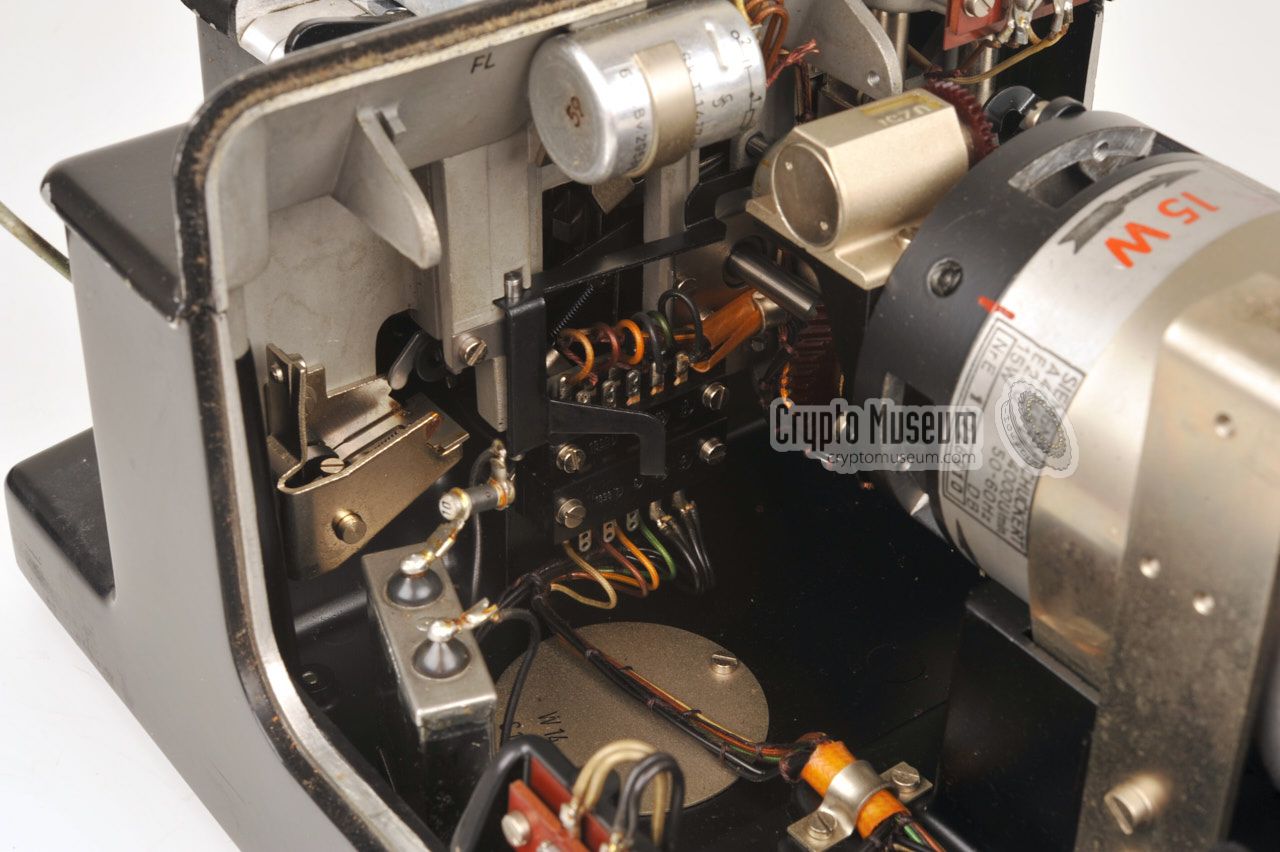

Wiring detail

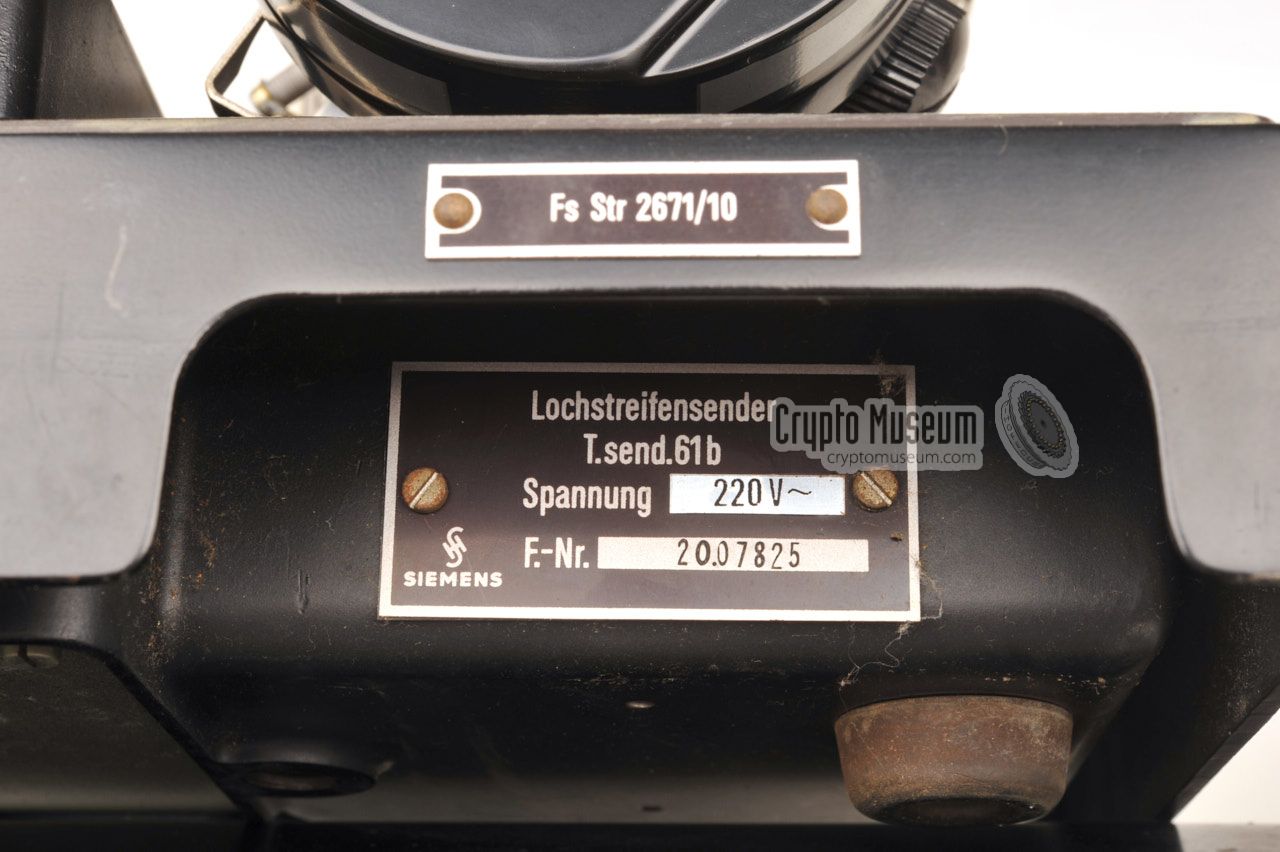

Model and serial number plate
A
×
A
1 / 8
Siemens T.send.61b
A
2 / 8
Close-up of the tape rader
A
3 / 8
Inside the T send 61
A
4 / 8
T.send.61b interior
A
5 / 8
T.send.61b interior
A
6 / 8
Motor
A
7 / 8
Wiring detail
A
8 / 8
Model and serial number plate

Documentation
  1. Lochstreifensender T send 61b, Bedienungs- und Wartungsanleitung
    Operating and maintenance instructions (German).
    Fs Wa 2671/10. Siemens & Halske, February 1959.

  2. Der Lochstreifensender T send 61a, Betriebsanweisung und Teileverzeichnis
    Technical description and parts list (German).
    Fs Ba 2673/1. Siemens & Halse, January 1954.

  3. T send 61, Wiring diagrams
    Siemens & Halske, date unknown.

  4. Beschrijving en onderhoudsvoorschrift Automatische Zender Type T 61 a
    Operating and maintenance instructions (Dutch).
    Tgf 1018a. PTT, May 1954. Issue 3. CM303982.
