M-94   CSP 488
Strip cipher device - this page is a stub - wanted item

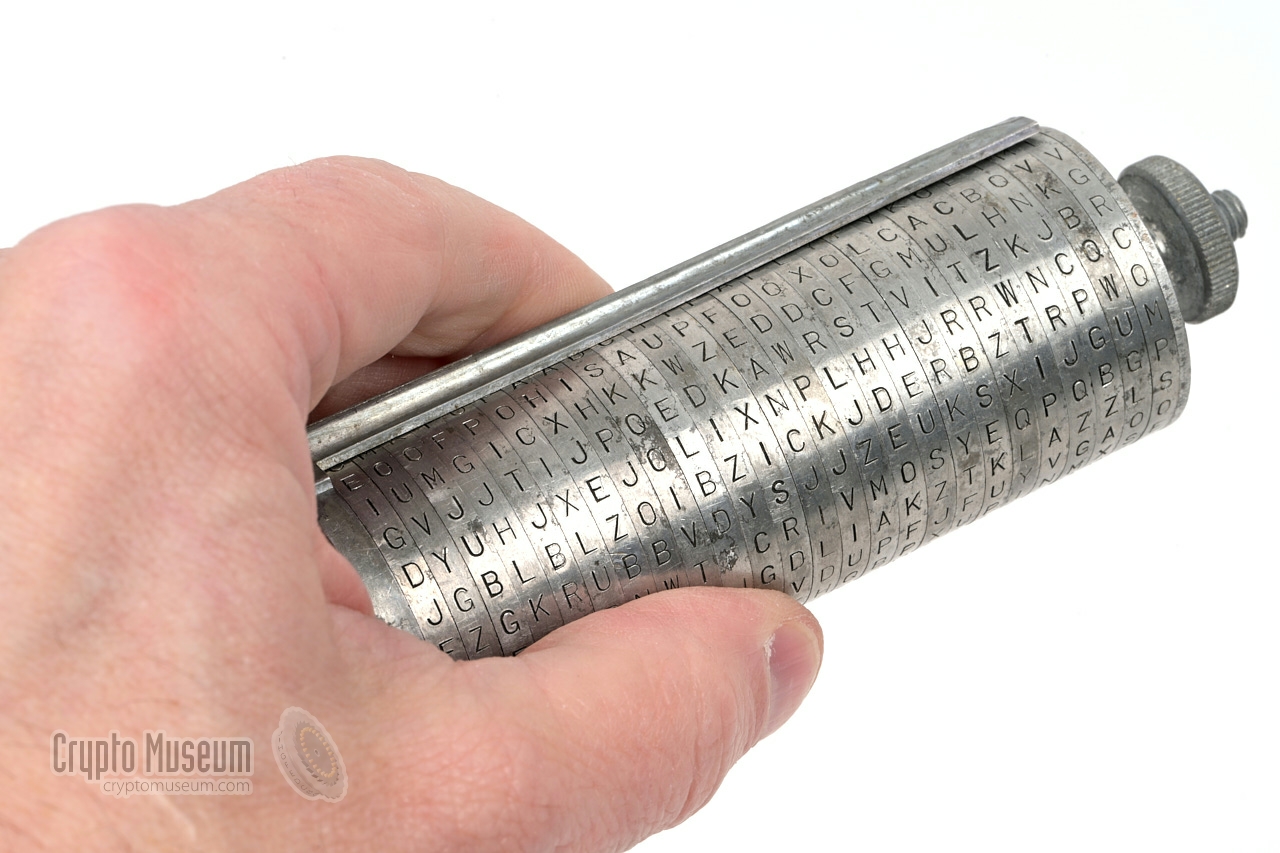

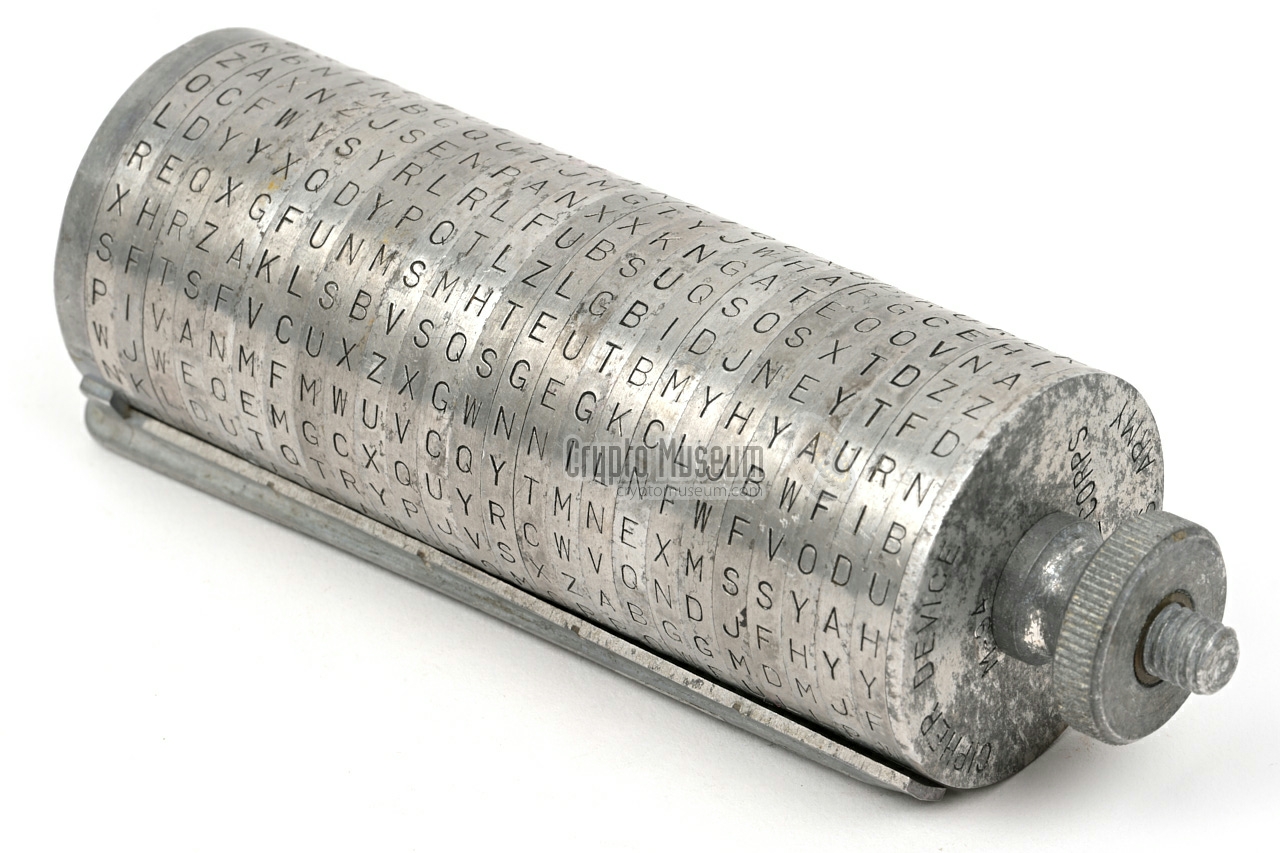

M-94 was a polyalphabetic manual substitution cipher device for tactical messages, developed around 1917 1 by US Army major Joseph O. Mauborgne, and manufactured by several companies, including Doehler, Reeve and Alcoa. It was introduced to the US Army in 1921 and is based on a 1795 invention by (then) US President Thomas Jefferson. It offers limited cryptographic security.

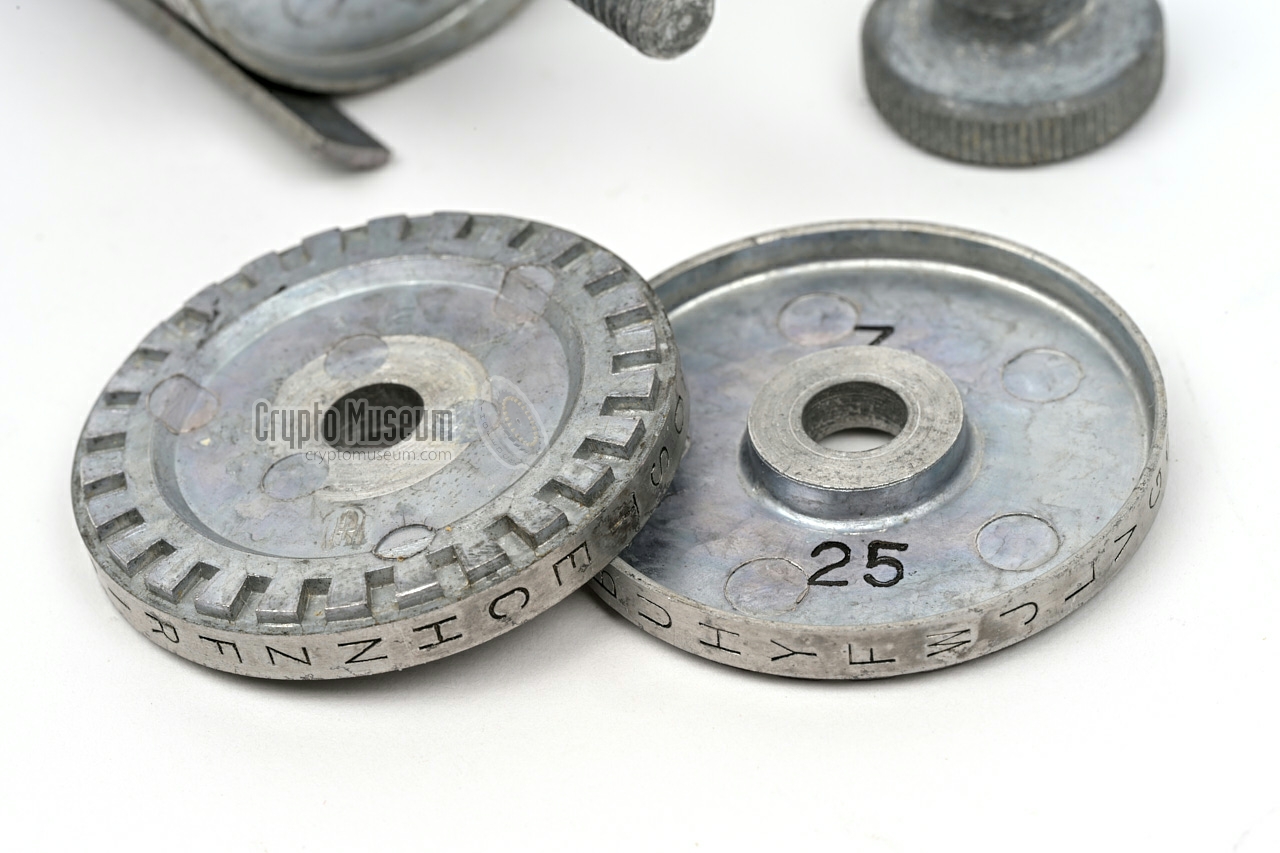

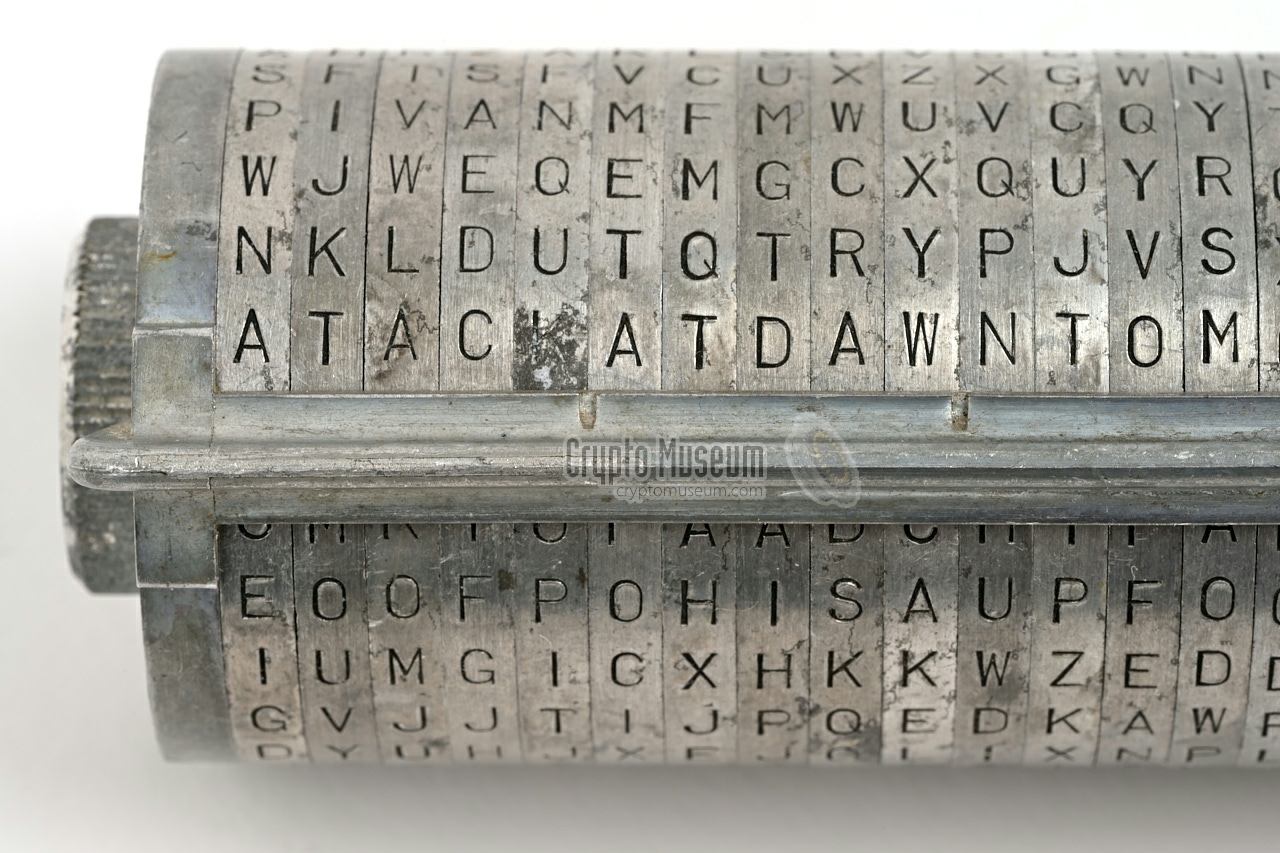

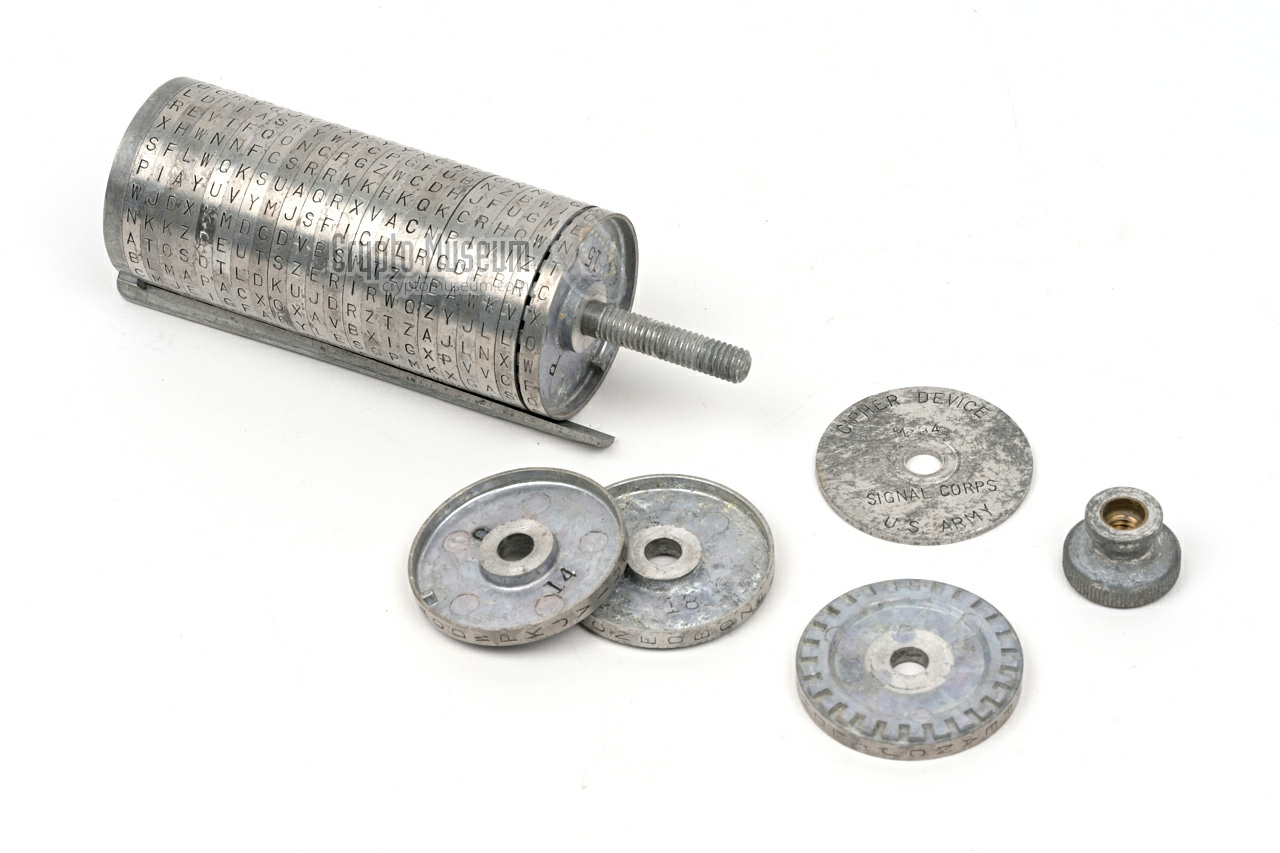

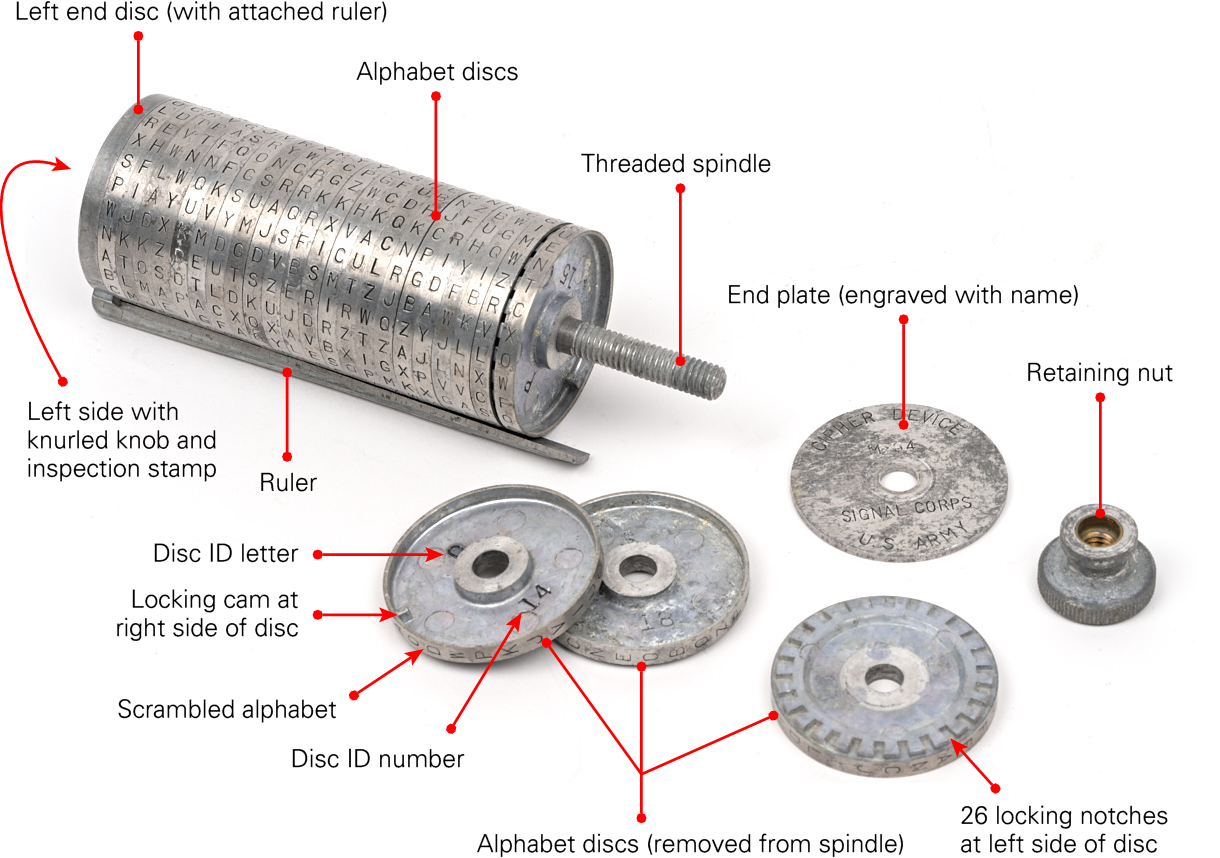

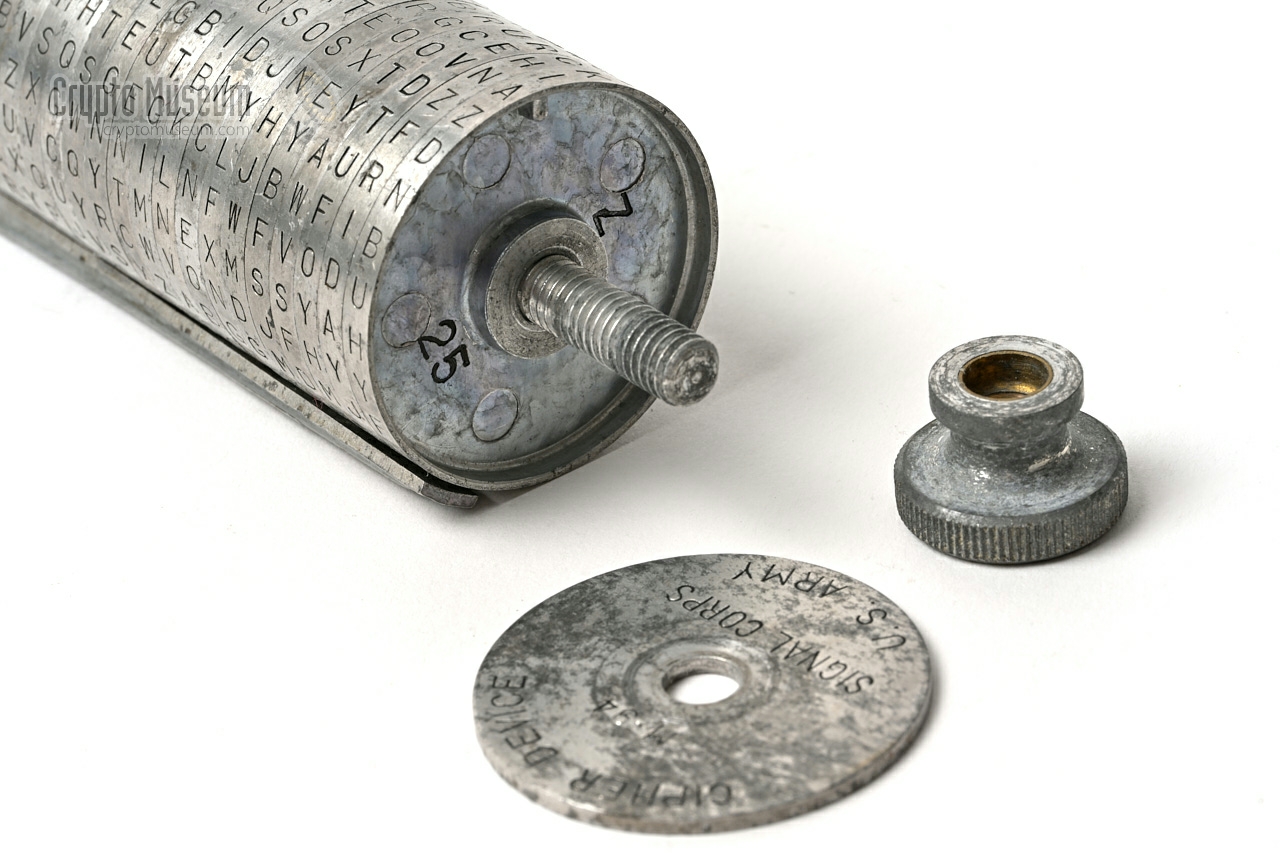

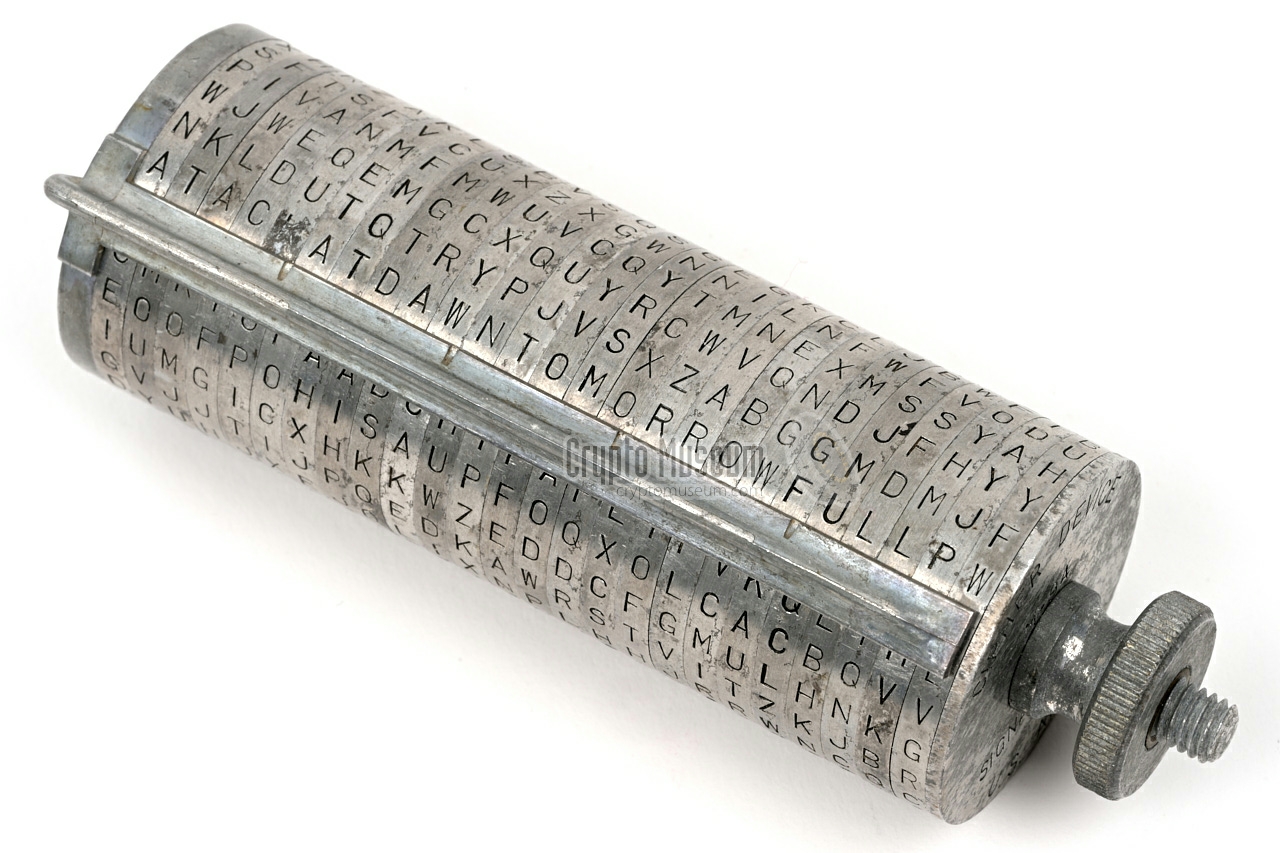

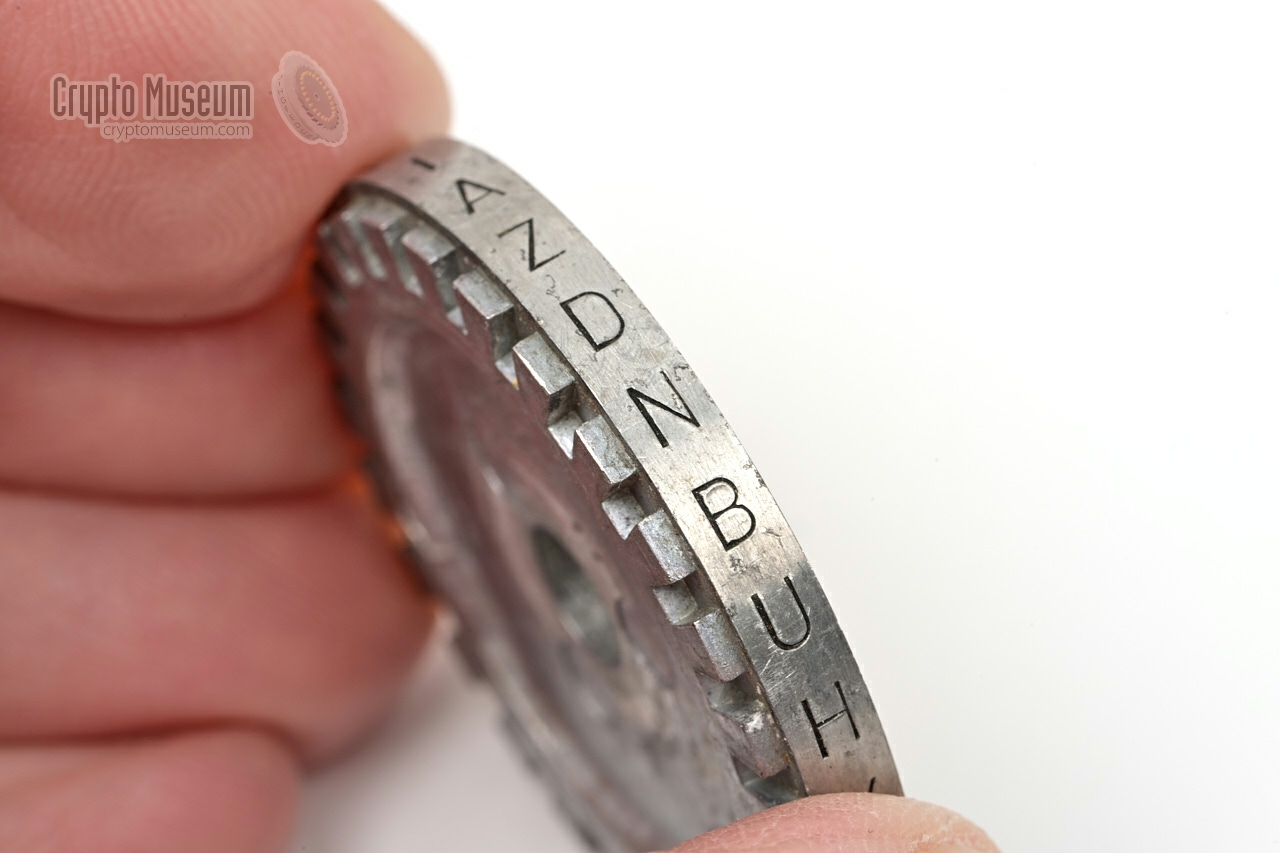

The M-94 consists of 25 circular discs, each with a different mixed alphabet, placed on a com­mon spindle. For this reason, the device is also known as a revolving discs cipher. Each disc has the 26 letters of the Latin alphabet engraved in a different (randomized) order at the outer rim, and is identified by the letter that follows the 'A'.

M-94 was manufactured by several companies. Although the exact procurement figures are unknown, ASA's cryptographer William Friedman reported in 1943, that a total of 9432 units had been manufactured for use by the US Army.


A similar device, issued in 1946 by the Swiss Army, is known as Front-Chiffrier­gerät or FG. The M-94 was used until approx. 1942, after which was replaced by the M-209 cipher machine, also known as CSP-1500 — the military variant of the Hagelin C-38 pin-and-lug cipher machine.

  1. Somewhere between September 1916 and August 1917 [1].

Inventors
The principe behind the M-94 seems to have been (re)invented at several moments in history:

  • Thomas Jeferson · 1795
    President of the United States.

  • Etienne Bazeries
    Commandant in the French Army.

  • Parker Hitt
    Captain in the US Army.

  • Joseph O. Mauborgne · 1917
    Major (later: Major General) in the US Army. Chief, Engineering and Research Division, Office of the Chief Signal Officer (afterwards: Chief Signal Officer).
Manufacturers
  • 1921 (2000 units)
    Doehler Die Casting Company, New York
  • 1928 (1094 units)
    Reeve Electrical Company,New York
  • ? (6338 units)
    Alcoa
Users
  • M-94
    1921 >
    US Army
  • CSP-488
    1928 >
    US Navy
  • CSP-493
    1939 >
    US Coast Guard
References
  1. ASA Historian AS-13, The History of Army Strip Cipher Devices 1
    SRH-366. July 1934 - October 1947.
    Army Security Agency, Washington (USA), November 1948.

  2. Jerry Proc's crypto pages, M-94 (CSP-488)
    Retrieved May 2018.

  3. Wikipedia, M-94
    Retrieved May 2018.
  1. Declassified 2 March 1987 by Director NSA, per Sec. 3, E.O. 12356.
