PE-112
Smart card reader/writer - this page is a stub

PE-112 was an external smart card reader with an RS232 interface, developed around 1994 by Philips (France).

...

The device is suitable for both type of ISO 7816-2 cards: with the contact pads in the top left corner (the standard until 1990) and with the contact pads at the left centre (the standard from 1990 onwards).

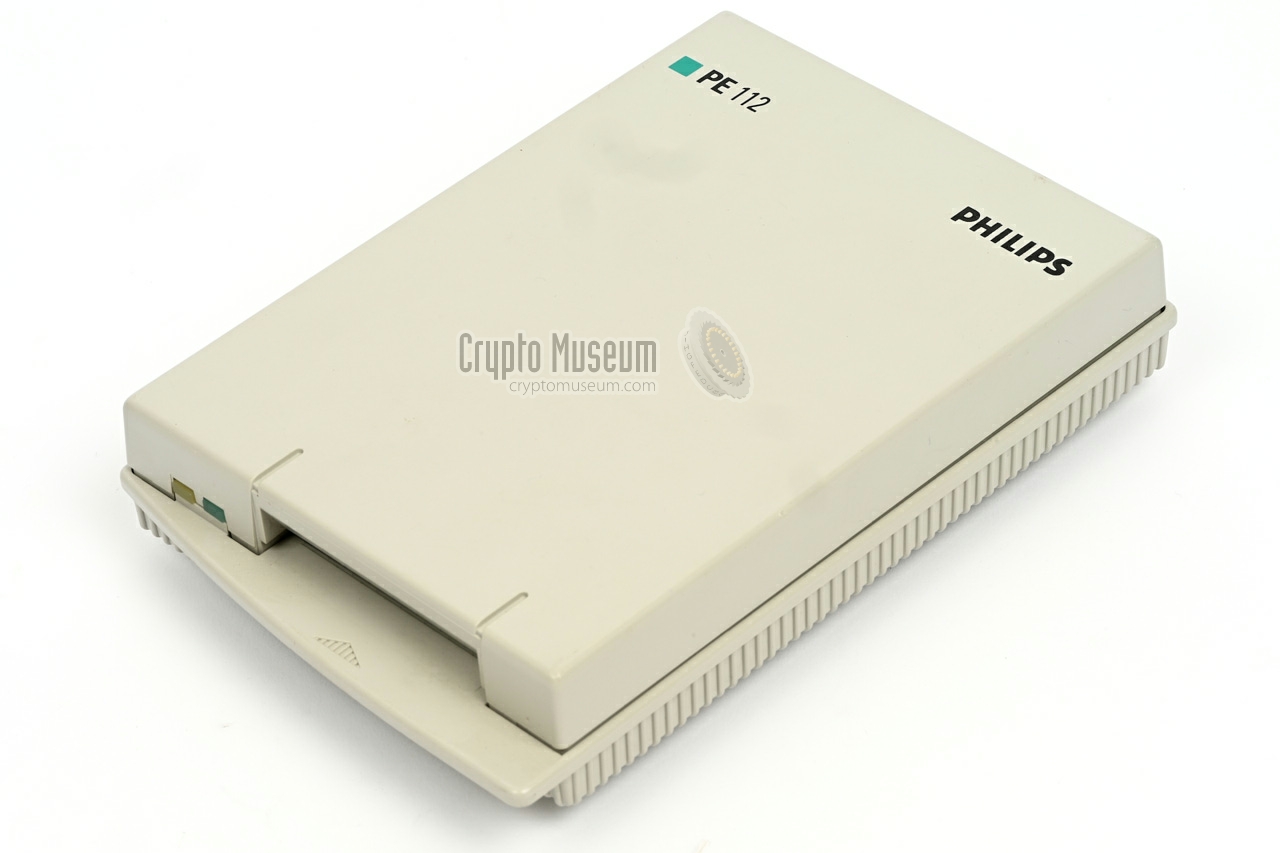

PE-112 smart card reader

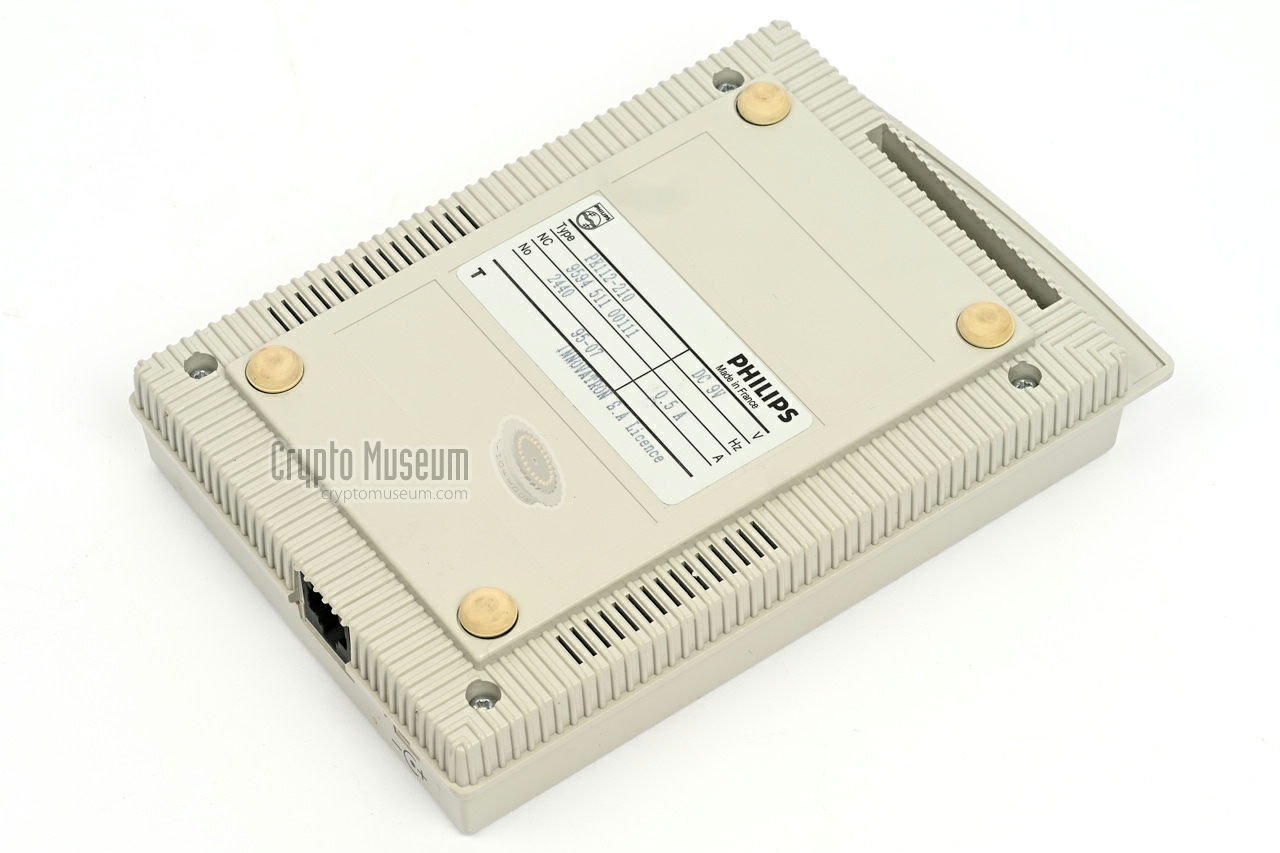

Bottom side
A
×
A
1 / 2
PE-112 smart card reader
A
2 / 2
Bottom side

Specifications
  • Device
    Smart card reader
  • Purpose
    Read/writing TB-100 smart cards (security tokens)
  • Type
    External
  • Manufacturer
    Philips (France)
  • Reseller
    Philips
  • Model
    PE-112
  • Year
    1994
  • 9594 511 00108 (PE-112-202)
    9594 511 00111 (PE-112-210)
  • Country
    France, Netherlands
  • Predecessor
    PE-118
  • Sucessor
    PE-122
  • Power
    9V DC
  • Current
    0.5A
  • Dimensions
    163 × 110 × 35 mm
  • Weight
    218 g
