Audium T-7114
Covert microphone

T-7114 and T-7314, were subminiature microphones, made in the early 1960s, by hearing aid manufacturer Audium in Amsterdam (Netherlands). Although originally intended and used for hearing aids, they were used for a number of years by the US Central Intelligence Agency (CIA) in combination with the Easy Chair listening devices developed by the Dutch Radar Laboratory (NRP).

According to the datasheet [A], the microphone covers the voice spectrum, and performs best between 600 and 5000 Hz, with a preference for the higher frequecies. Measuring just 9.7 x 9.7 x 5 mm and weighting less than one gram, it was one of the smallest microphones of its time.

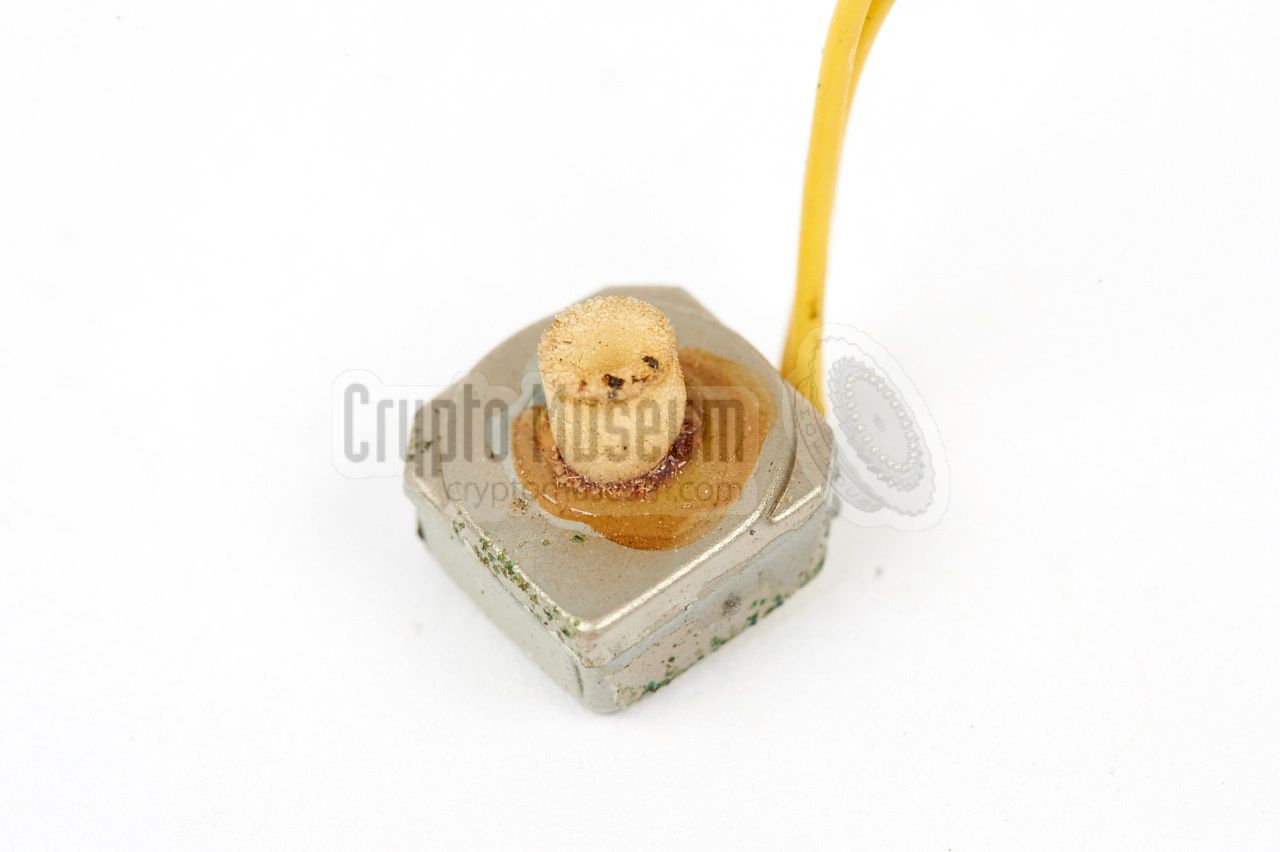

The image on the right shows the 7114, which has a soft optional sound port that allows the microphone to be housed inside a concealment. By extending the sound port with a hollow pipe or flexible tube, it can also be used as a probe microphone, much like the CIA's larger Type-B.

Audium T-7114 subminiature microphone (1962)

Because of its small dimensions, the T-7114 was used for a number of years in combination with Easy Chair Mark V listening devices, as an alternative for the (better but larger) Shure MC-30. Both microphones were eventually superceeded by the Knowles BA-1501 and the BA-1502.

Audium T-7114 subminiature microphone (1962)
A
×
A
1 / 3
Audium T-7114 subminiature microphone (1962)
A

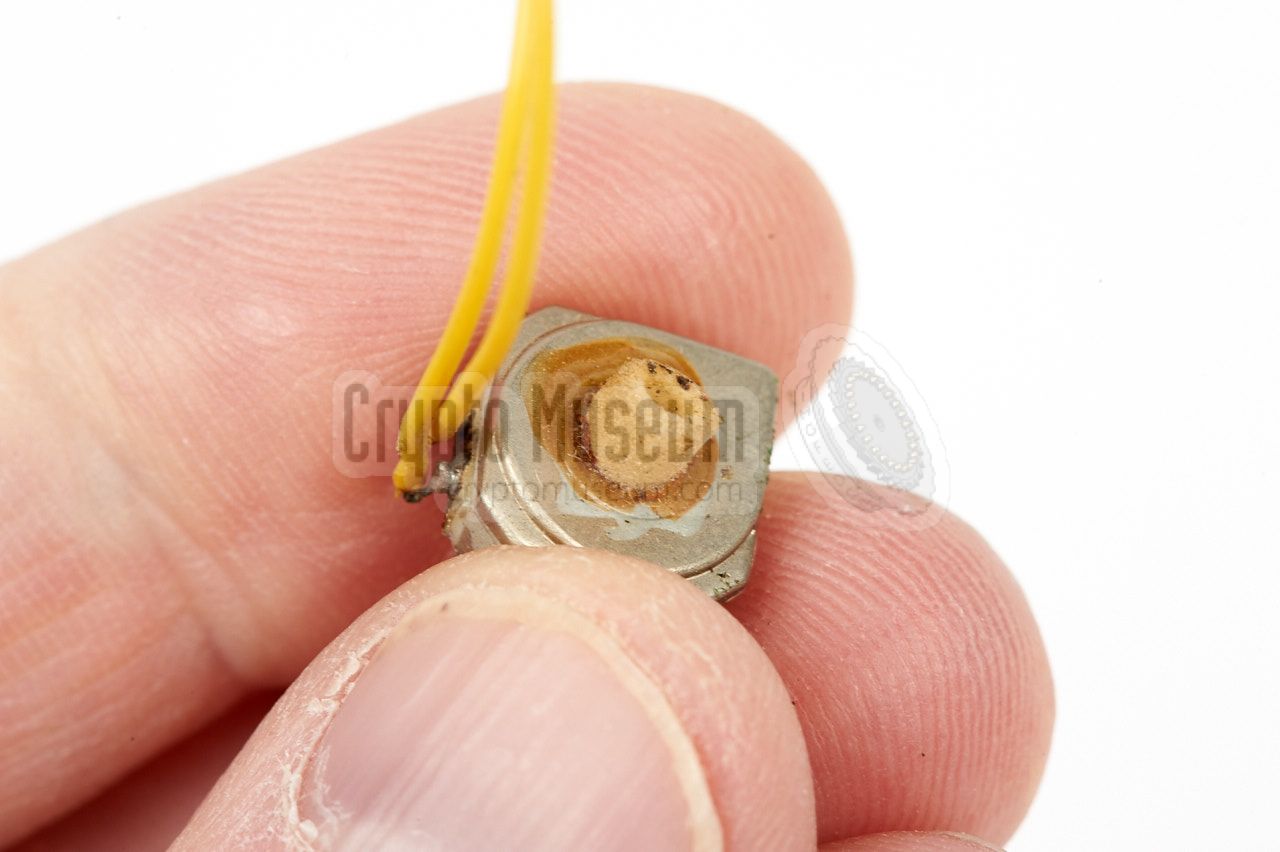

2 / 3
2 / 3
A

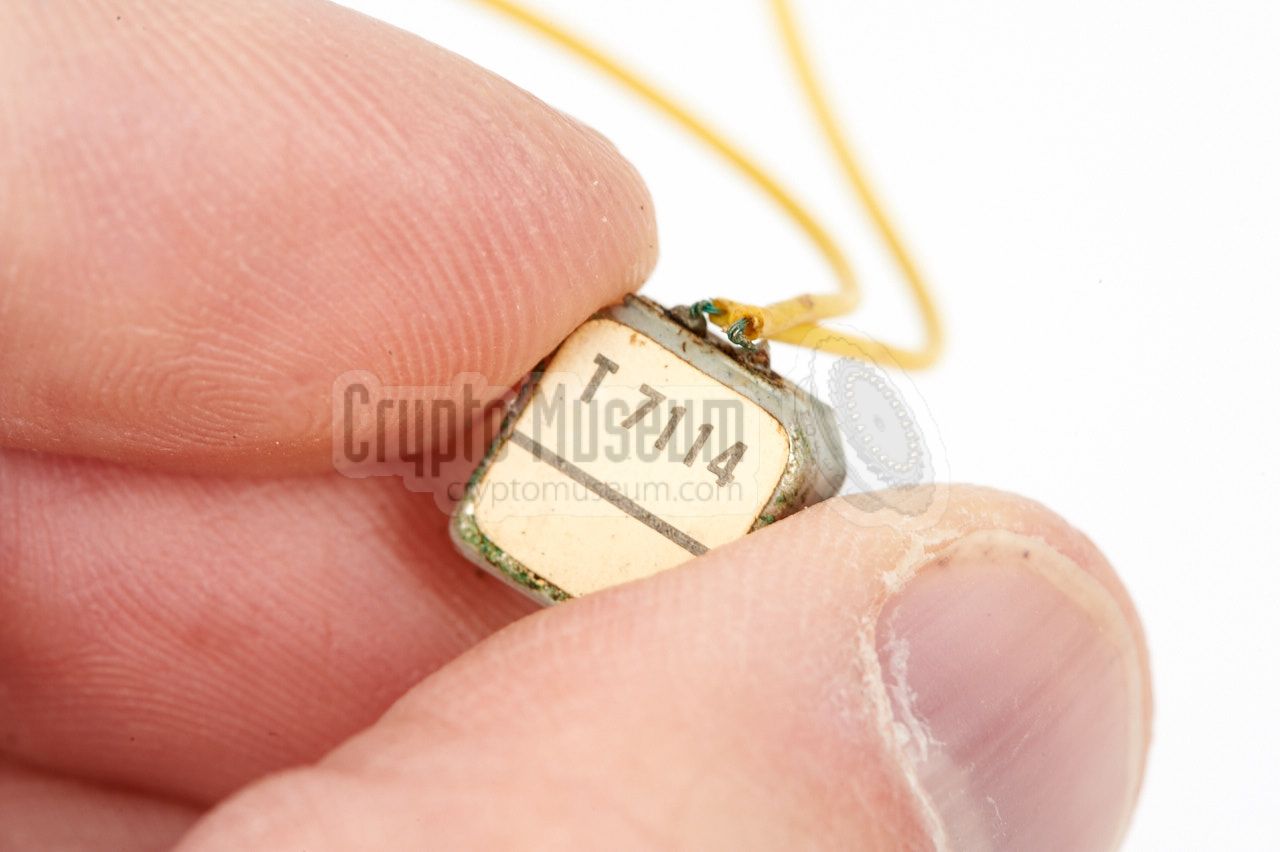

3 / 3
3 / 3

Comparision
The image below shows the Audium T-7114 in comparison with other microphones of the era. The T-7114 is visible at the bottom right (with the two yellow wires). At the bottom left is the Shure MC-30. At the front centre are the later Knowles BA-1501 and BA-1502.

A collection of microphones that were used with Easy Chair equipment.


Specifications
  • Frequency
    600 - 4000 Hz
  • Impedance
    2500Ω at 1000 Hz
  • Size
    9.7 x 9.7 x 5 mm
  • Weight
    < 1 gram
  • Material
    Metal
  • Connection
    Solder pads
Documentation
  1. T-7114 and T-7314 datasheet
    Audium. 6 September 1962.
